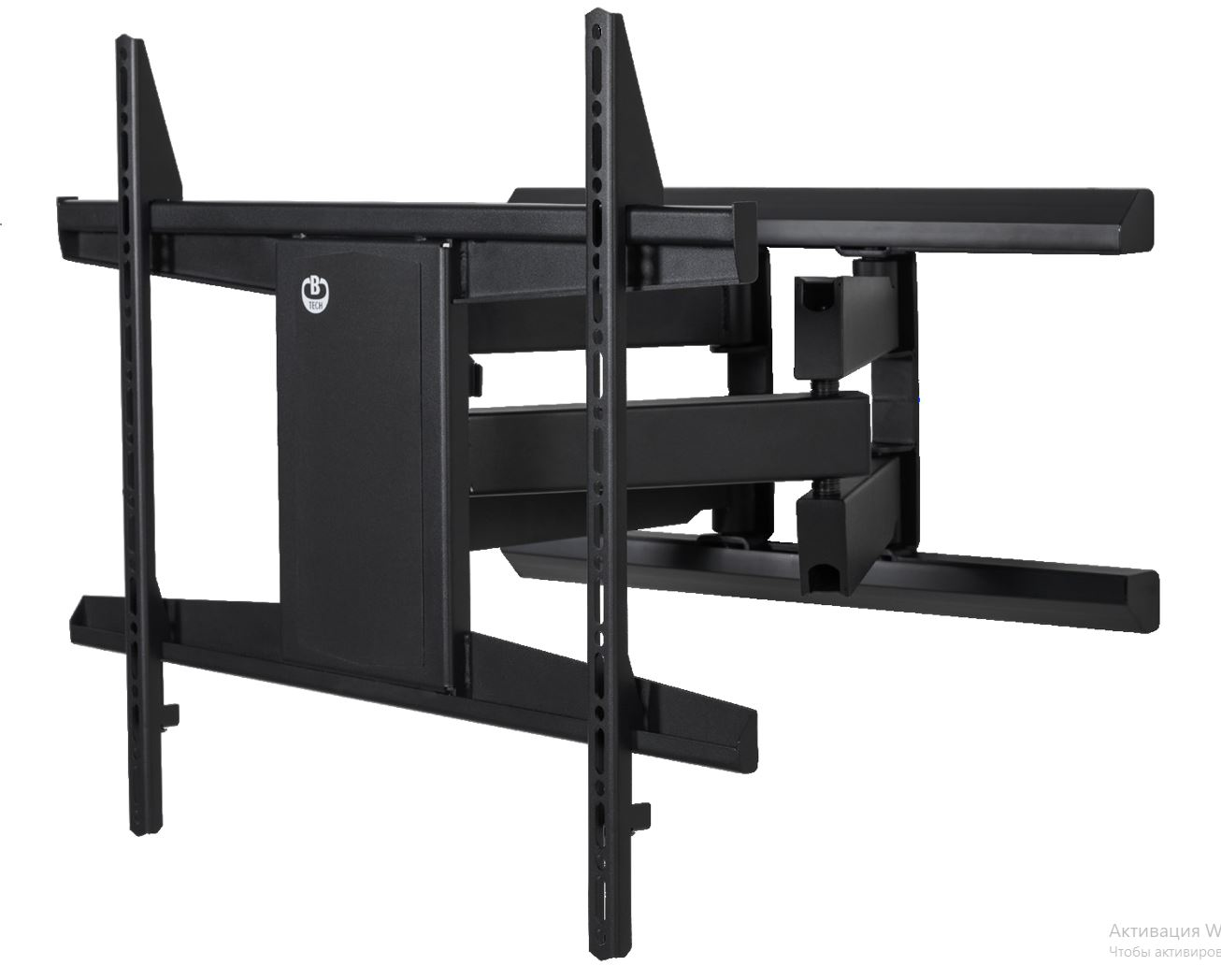

Designed to mount extra-large screens, this heavy-duty twin cantilever arm wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Featuring cover plates and integrated cable management for a tidy mounting solution, the BT8228 is ideal for both commercial and home installations.
Products specifications
| Width | 851 mm |
| Depth (max) | 62.8 cm |
| Height | 631.8 mm |
| Harmonized System (HS) code | 83024200 |
| Quantity per pack | 1 pair(s) |
| Quantity per pack | 1 pc(s) |
| Product colour | Black |
| Housing material | Metal |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 15° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Distance to the wall (max) | 62.8 cm |
| Distance to the wall (min) | 9 cm |
| Maximum weight capacity | 125 kg |
| Minimum screen size | 165.1 cm (65") |
| Number of displays supported | 1 |
| Maximum screen size | 3.05 m (120") |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 300 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Mounting type | Wall |
