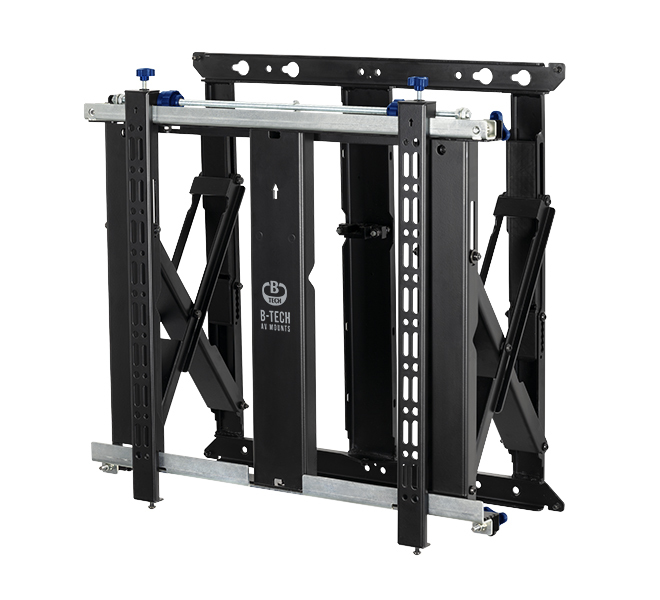

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.
Products specifications
| Width | 620 mm |
| Height | 541.4 mm |
| Harmonized System (HS) code | 83024200 |
| Product colour | Black |
| Distance to the wall (min) | 6.31 cm |
| Distance to the wall (max) | 23.5 cm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 106.7 cm (42") |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 100,400 x 400,600 x 400 |
