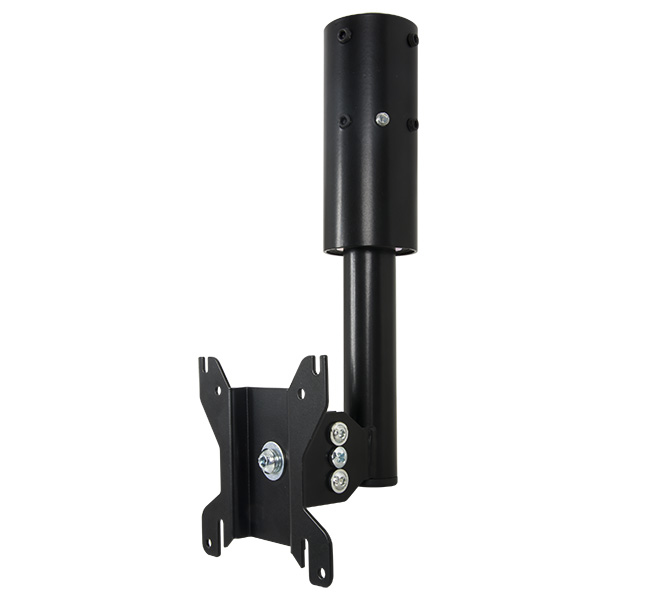

Designed to fit onto B-Tech's System 2 Ø50mm poles, the BT7551 is a flat screen mount which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy toolless adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7551 can also be ordered as part of a complete mounting solution, with a choice of Black or Chrome poles and a ceiling / floor mount (please see the BT7553 for more information).
Products specifications
| Width | 114 mm |
| Depth | 111 mm |
| Height | 311 mm |
| Harmonized System (HS) code | 83024200 |
| Product colour | Black |
| Tilt angle range | -15 - 90° |
| Swivel angle | 360° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Maximum weight capacity | 23 kg |
| Number of displays supported | 1 |
| Maximum screen size | 71.1 cm (28") |
| Mounting | Clamp |
| Mounting type | Ceiling |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
