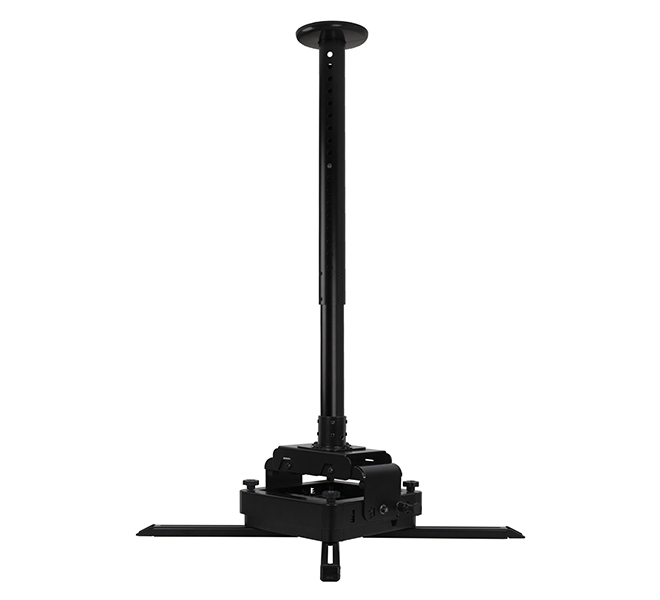

The BT893-AD is a ceiling mounted, universal projector mount designed to mount projectors up to 70kg. The BT893-AD allows the projector to be lowered or raised in 25mm increments & securely fastened at the desired height. Featuring easy adjustment of tilt, yaw, roll & additional micro-adjustment at each corner makes alignment of projections quick & simple. The projector fixes to a mounting plate that can be extended to accommodate large fixing patterns using the included extension legs, ideal for large scale & precision applications such as events & staging or for edge-blending & projection mapping.
Products specifications
| Width | 283 mm |
| Harmonized System (HS) code | 83024200 |
| Mounting type | Ceiling |
| Maximum weight capacity | 70 kg |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment range | 766 - 1186 mm |
| Swivel angle range | -45 - 45° |
| Angle of rotation | 5° |
| Tilt angle range | -10 - 20° |
