Ideal for uneven walls

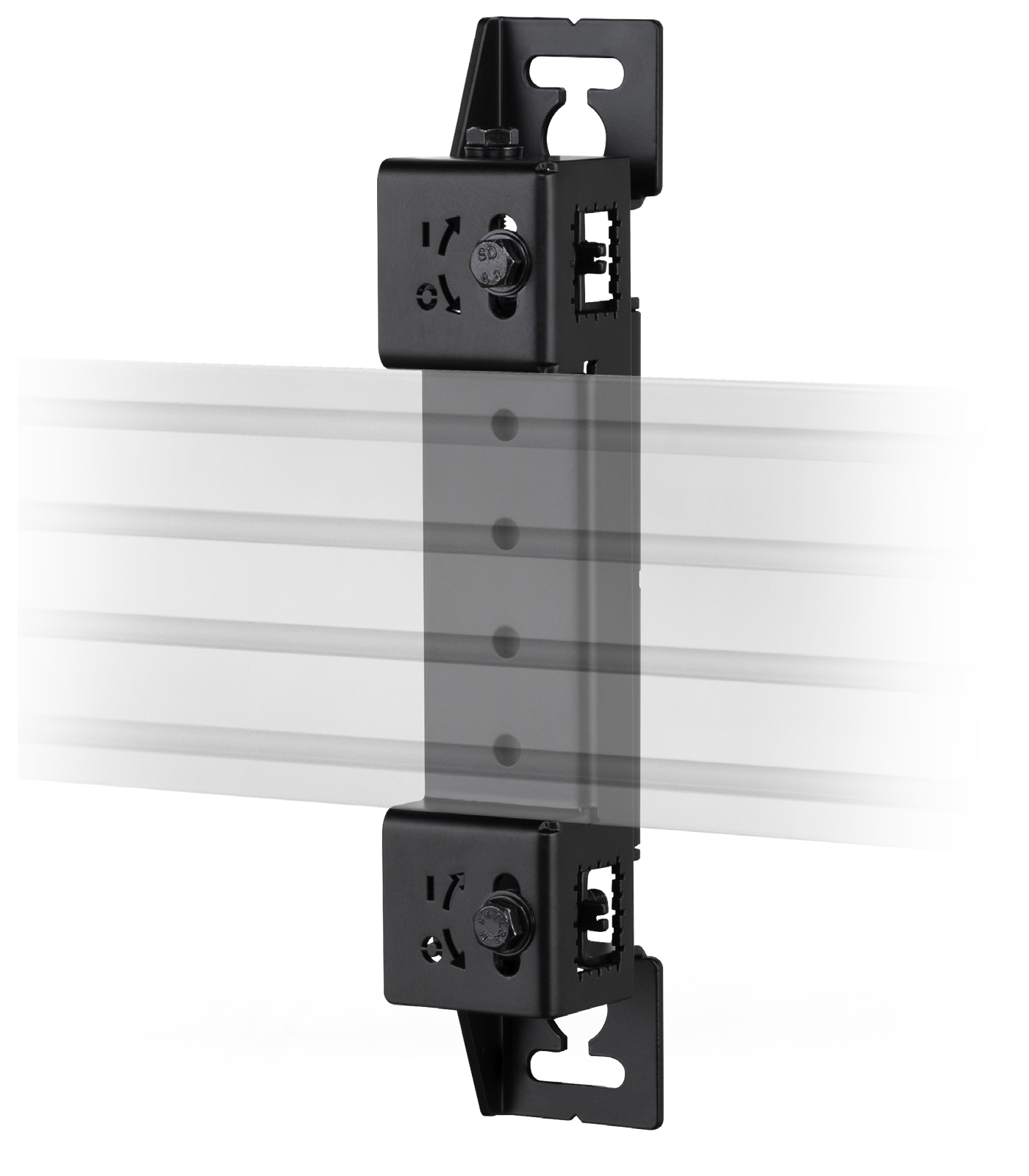

The BT8390-WFK6 is an adjustable wall bracket designed for the installation of dvLED video walls. As part of the System X Range, it is compatible with B-Tech's range of horizontal mounting rails and features both height and depth adjustment to give full, precise control over the install across every axis, no matter how uneven the wall surface is. Keyhole fixing points make installation quick and easy and the bracket is also compatible for mounting onto vertical columns and poles, meaning it can be used in floor stand applications as well as for wall mounted installations.
Products specifications
| Product type | Rail module |
| Product colour | Black |
| Housing material | Metal |
| Maximum weight capacity | 50 kg |
| Compatibility | BT8390, BT8393 |
| Width | 56 mm |
| Depth | 59 mm |
| Height | 310 mm |
| Compliance certificates | cTUVus |
| Certification | TUV |
| Harmonized System (HS) code | 83024200 |
| Quantity per pack | 1 pc(s) |
| Screws included | Yes |
| Manual | Yes |
