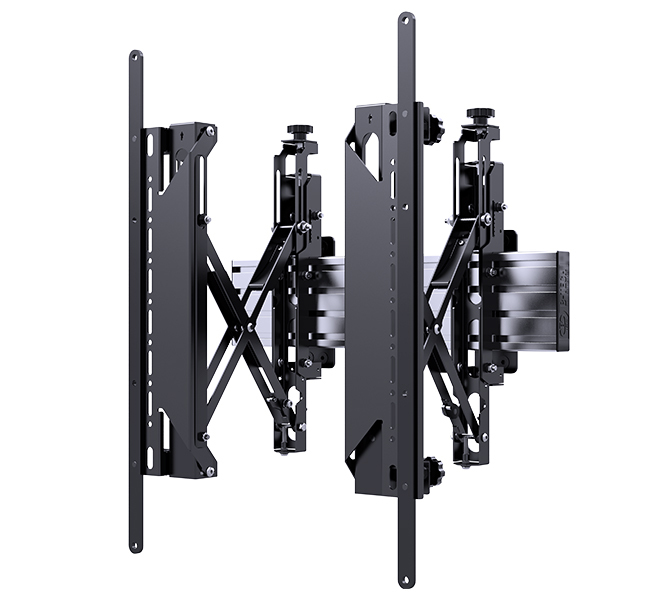

The BT9909 is a pop-out mounting solution that is ideal for portrait mounting LG's 86BH5C Ultra Stretch Signage in a recessed wall. Tool-less, 8 point micro-adjustment allows mounted screens to sit perfectly flush with the wall and the pop-out mechanism provides access to the rear of the screen for easy installation and maintenance. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.
Products specifications
| Width | 300 mm |
| Depth (max) | 31.9 cm |
| Height | 600 mm |
| Master (outer) case gross weight | 12 kg |
| Master (outer) case volume | 0.041 cm³ |
| Products per master (outer) case | 1 pc(s) |
| Product colour | Black, Silver |
| Mounting kit | Yes |
| Distance to the wall (min) | 30.4 cm |
| Distance to the wall (max) | 31.9 cm |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 1 |
| Maximum screen size | 2.18 m (86") |
| Mounting type | Wall |
| Maximum VESA mount | 600 x 200 mm |
