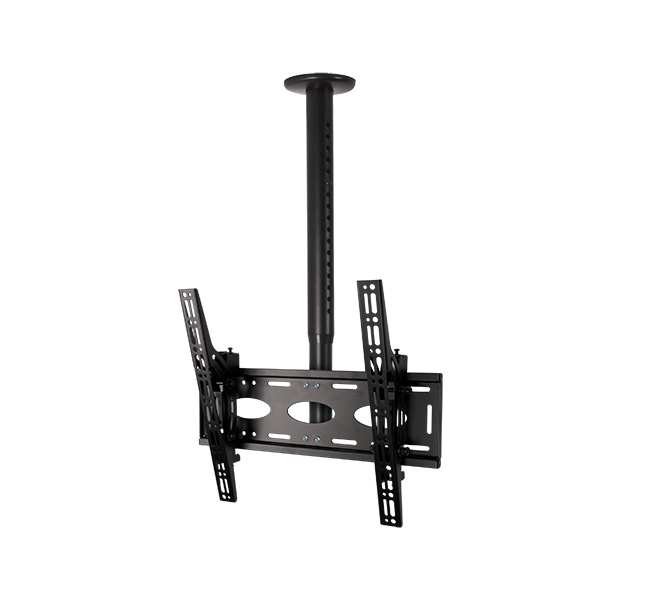

Designed to ceiling mount screens up to 50kg, the BT8426 features an adjustable drop of 663mm - 943mm in increments of 25mm.The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Products specifications
| Width | 600 mm |
| Depth | 152.1 mm |
| Harmonized System (HS) code | 83024200 |
| Master (outer) case gross weight | 9.31 kg |
| Products per master (outer) case | 1 pc(s) |
| Product colour | Black |
| Mounting kit | Yes |
| Height adjustment | Yes |
| Height adjustment range | 625 - 950 mm |
| Tilt angle range | -15 - 15° |
| Cable management | Yes |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 99.1 cm (39") |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Ceiling |
| Maximum VESA mount | 600 x 400 mm |
