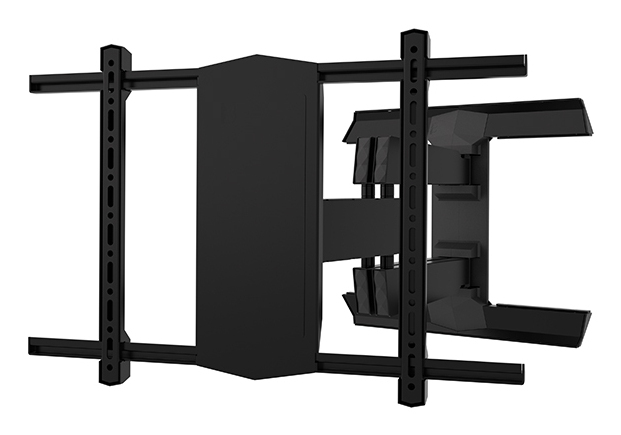

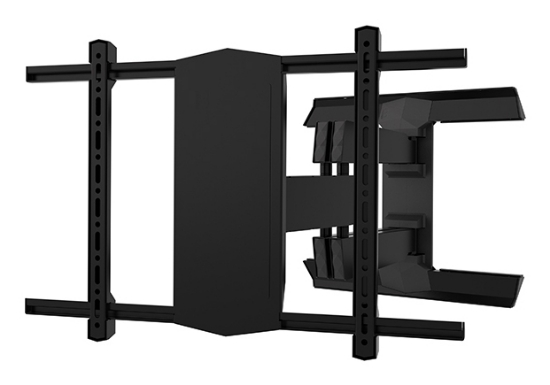

Designed for large screens up to 75", this universal twin-cantilever wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 50kg with a simple touch, securely holding the tilt in place. Featuring swivel points at the wall and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.
Products specifications
| Width | 662.6 mm |
| Depth | 582.3 mm |
| Height | 449.6 mm |
| Product colour | Black |
| Orientation | Landscape/Portrait |
| Mounting kit | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 14° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Cable management | Yes |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 1 |
| Maximum screen size | 190.5 cm (75") |
| Suitable for TV | Yes |
| Mounting type | Wall |
| Maximum VESA mount | 600 x 400 mm |
| Distance to the wall (min) | 6.3 cm |
| Distance to the wall (max) | 58.2 cm |
