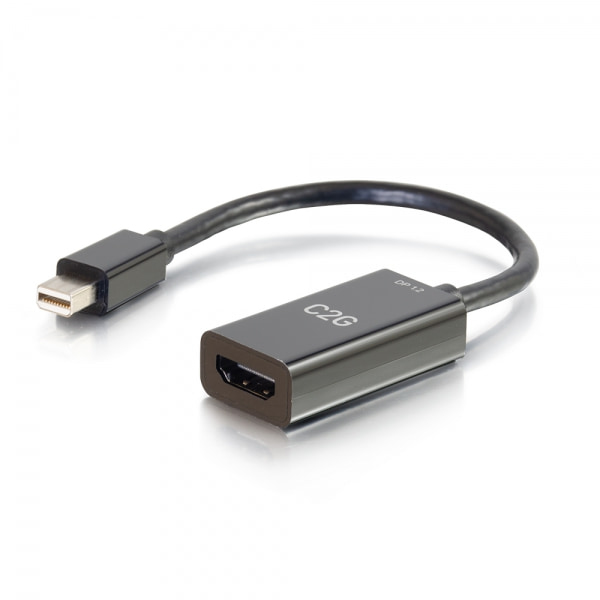

The Mini DisplayPort to HDMI Passive Adapter Converter is an ideal solution for streaming high-quality audio/video content from the Mini DisplayPort or Thunderbolt 2 output of a laptop to an HDTV or projector which accepts an HDMI input ― making it a perfect solution for the office, work space applications, or conference rooms.
This passive adapter converter is a simple plug and play solution that has a DisplayPort 1.2a input and an HDMI 1.4b output. It supports high-definition resolutions up to 4K (3840 x 2160 at 30Hz) and is powered from the Mini DisplayPort source device ― allowing it to deliver high quality audio and video to the connected display.
Note:
If the source device supports dual-mode DisplayPort (also known as DP++), a passive adapter can be used because the source device can perform the conversion. If the source device does not support DP++, then an active adapter converter should be used. Thunderbolt 2 ports support DP++ natively.
Products specifications
| Cable length | 0.15 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2a |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate | 2.7 Gbit/s |
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Converter type | Passive video converter |
| Weight | 14.8 g |
| Depth | 203 mm |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certification | FCC, CE |
