See in great detail
Share high-quality visuals including detailed diagrams and textbook pages with a Full HD 1080p output and 8x digital zoom. You can even adjust the height and rotate the camera 90º to accommodate 3D objects. For science lessons, the supplied microscope attachment can also be used to unveil fascinating microscopic worlds in real-time.
Effortless to use
Minimise preparation time with this high-tech, compact and affordable portable solution, that makes it quick and easy to enlarge source material. In just seconds, you can connect directly to the latest Epson projectors using the two in one USB cable connection which provides power and transmits the video signal.
Highly portable, modern design

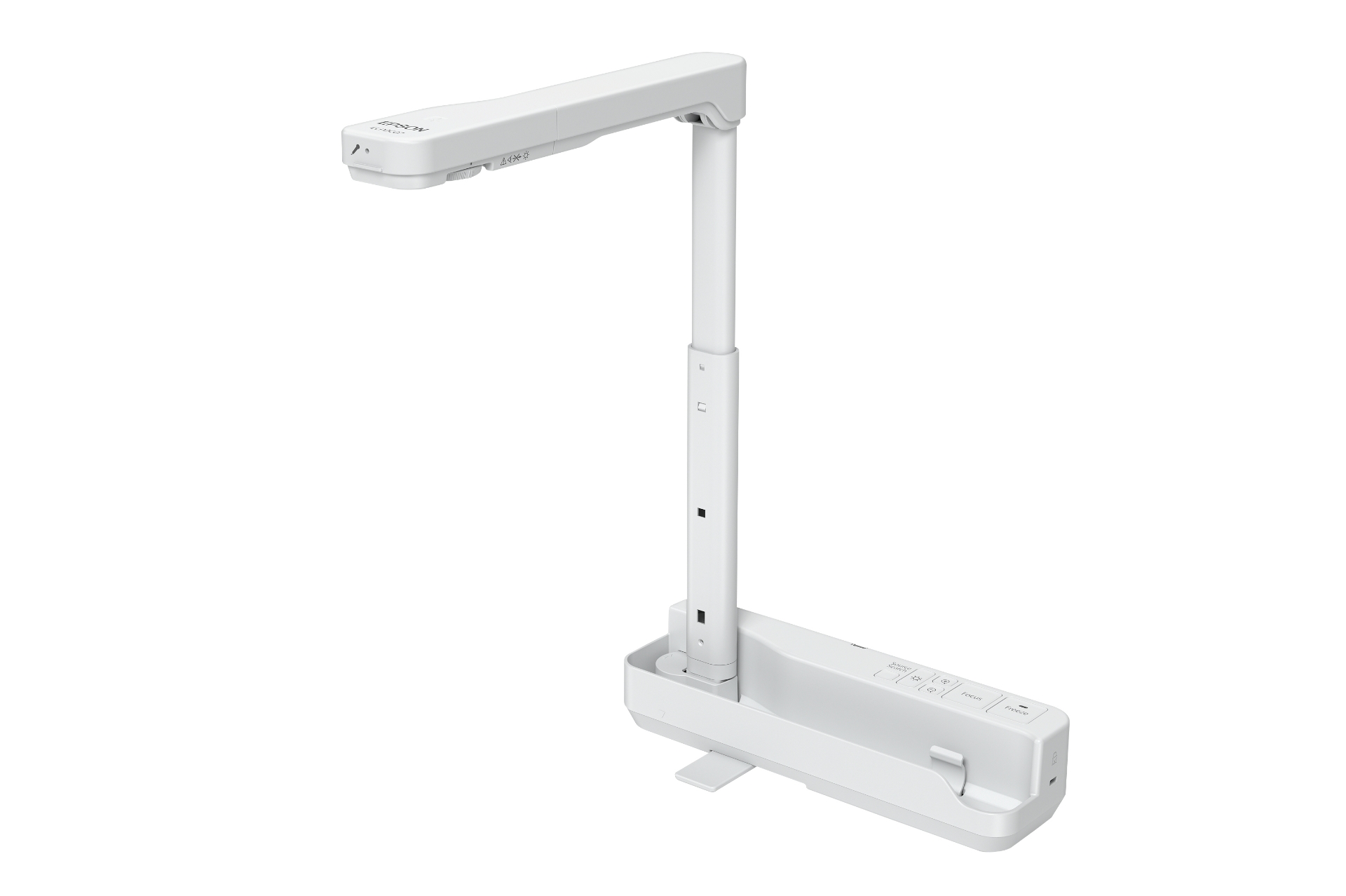

The Epson ELPDC07 visualiser is neat and compact, it features LED illumination, a built-in microphone and doesn’t need a separate power supply. It’s also light and easy to carry in the included carry case, with the arm folding neatly down into the base. Needing just 2.5W, you can be sure that its power consumption meets modern energy conservation requirements .
Products specifications
| Width | 260 mm |
| Depth | 388 mm |
| Height | 76 mm |
| Weight | 1 kg |
| Dimensions folded (WxDxH) | 260 x 60 x 76 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 320 mm |
| Package height | 120 mm |
| Package weight | 1.73 kg |
| Power supply type | USB |
| Power consumption (typical) | 2.5 W |
| Power consumption (standby) | 2.5 W |
| Product colour | White |
| Display modes | Microscope |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Bundled software | Easy Interactive Tools, TWAIN-Treiber für Epson Dokumentenkamera (für Windows) |
| Illumination | Yes |
| Image quality adjustment | Brightness |
| Country of origin | Philippines |
| Interface | USB 2.0 |
| USB connector type | USB Type-B |
| Carrying case | Yes |
| Cables included | USB |
| Warranty card | Yes |
| Effective sensor resolution | 2 MP |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Image freeze | Yes |
| Light source | LED |
| Auto focus | Yes |
| Digital zoom | 8x |
| Shooting area (WxD) | 297 x 420 mm |
