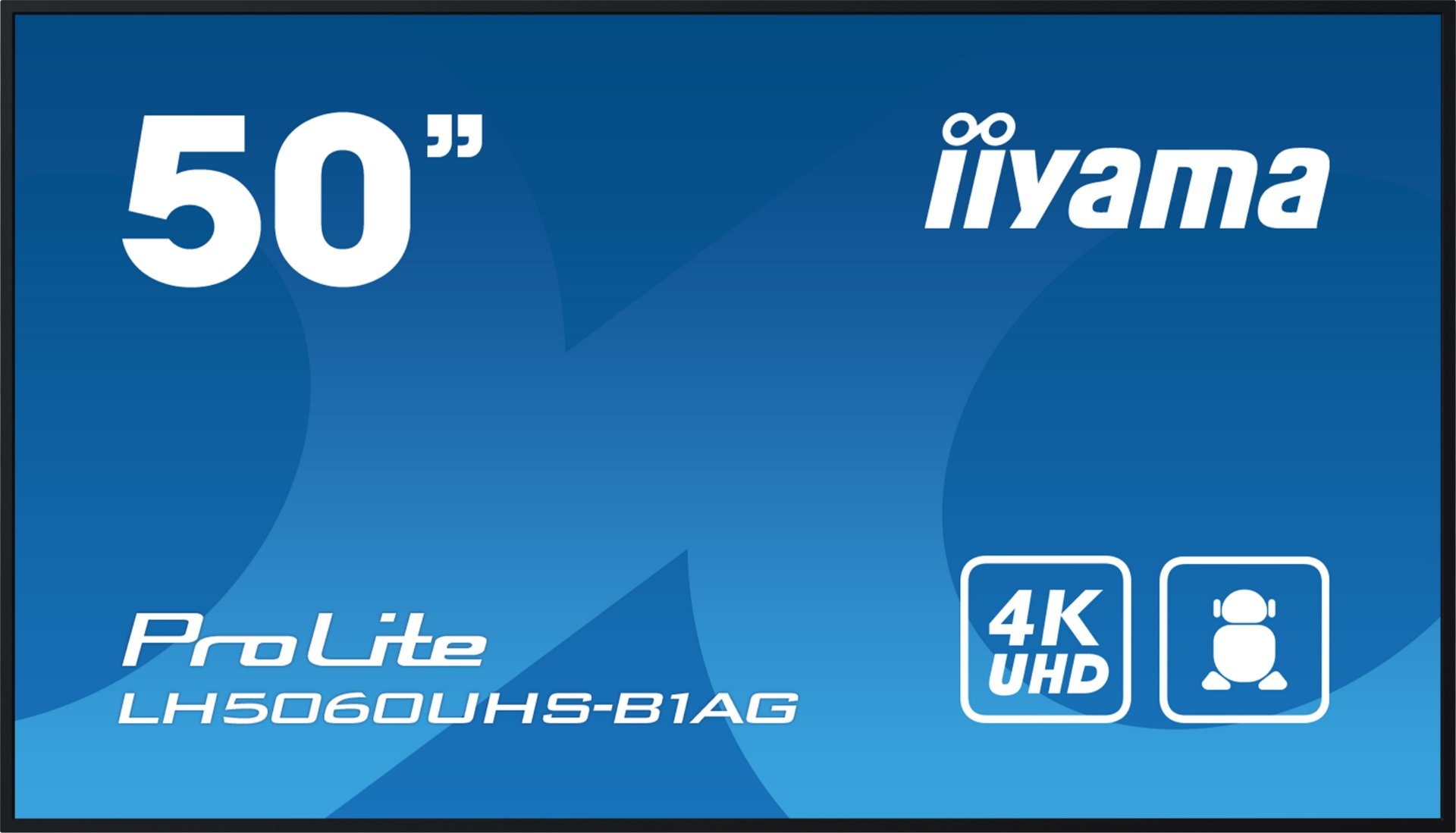

50" 4K UHD professional digital signage display with advanced control and connectivity options
Elevate your visual communication with the LH5060UHS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.
This ELED IPS display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5060UHS-B1AG will undoubtedly captivate your audience and leave a lasting impression.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
IISIGNAGE
iiSignage is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
ULTRA SLIM
With 50 percent depth saving over similar models, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.
MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
Products specifications
| Display width | 1127.5 mm |
| Display depth | 41 mm |
| Display height | 648 mm |
| Display weight | 12.6 kg |
| Package width | 1250 mm |
| Package depth | 128 mm |
| Package height | 760 mm |
| Package weight | 16.8 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Power consumption (typical) | 95 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 106 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Product design | Digital A-board |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Bezel width (bottom) | 1.55 cm |
| Bezel width (side) | 1.06 cm |
| Bezel width (top) | 1.06 cm |
| Purpose | Universal |
| On Screen Display (OSD) languages | Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Panel type | IPS |
| Display diagonal | 125.7 cm (49.5") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Active display area (W x H) | 1095.8 x 616 mm |
| Display diagonal (metric) | 125.7 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI, Power, RS-232 |
| Mounting kit | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Computer system | No |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | A53 |
| Processor cores | 4 |
| Internal memory | 2 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
