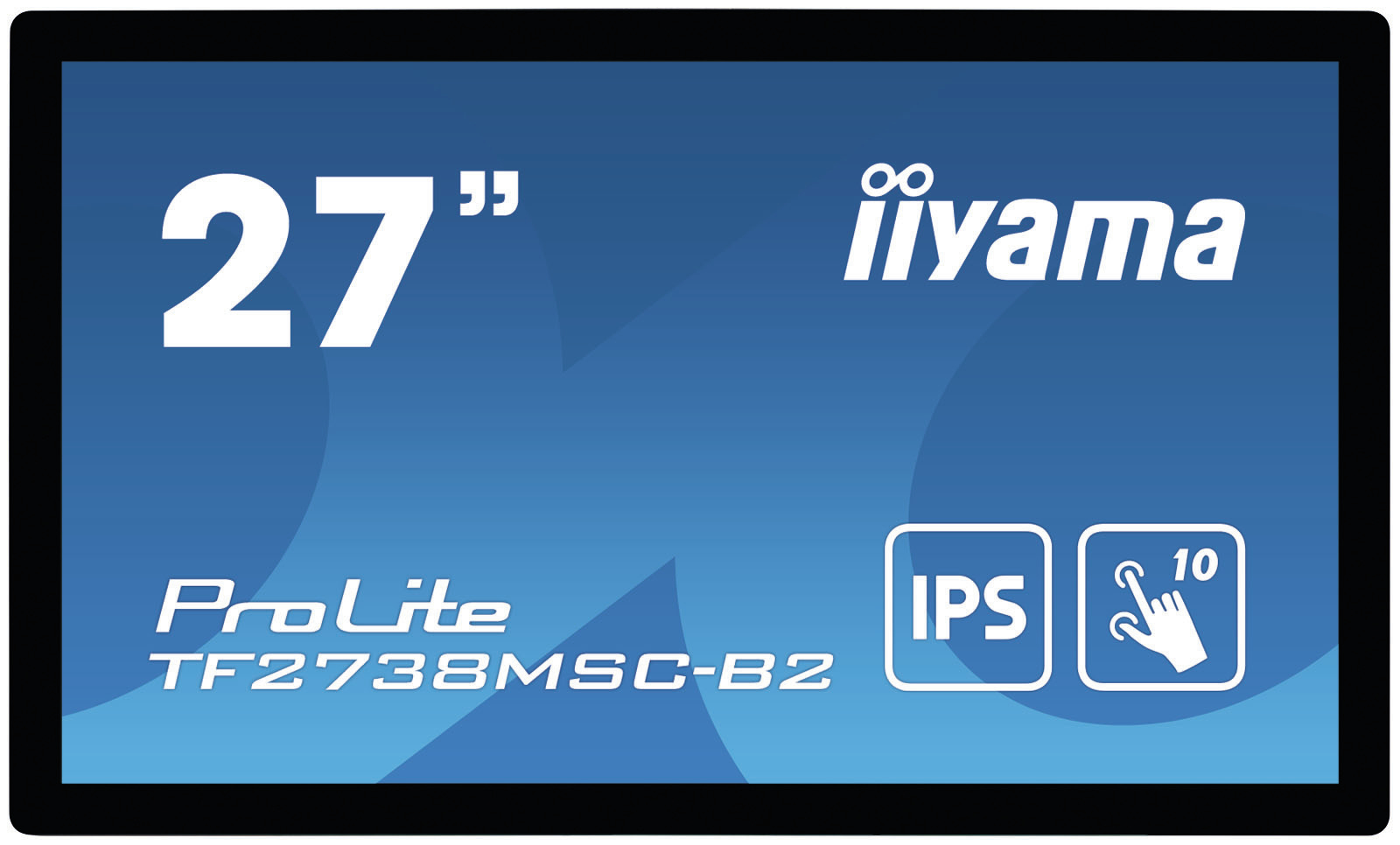

27” 10pt open frame touch monitor with edge-to-edge glass
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Products specifications
| Width (without stand) | 648.5 mm |
| Depth (without stand) | 52 mm |
| Height (without stand) | 386.5 mm |
| Weight (without stand) | 8.3 kg |
| International Protection (IP) code | IP1X |
| Display viewable area (HxV) | 597.6 x 336.2 mm |
| Placement supported | Horizontal/Vertical |
| Bezel width | 2.4 cm |
| Compliance certificates | CE, REACH, RoHS |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Harmonized System (HS) code | 85285210 |
| Package width | 746 mm |
| Package depth | 123 mm |
| Package height | 500 mm |
| Package weight | 9.4 kg |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 Hz |
| Power supply type | AC |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 426849 |
| DVI port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Product colour | Black |
| Glass thickness | 3.6 mm |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 500 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 12000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 30 - 80 kHz |
| Display diagonal (metric) | 68.6 cm |
| Surface hardness | 6H |
| Cables included | AC, DisplayPort, DisplayPort to Mini DisplayPort, HDMI, USB |
| Panel mounting interface | 100 x 100,200 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, French, Japanese, Polish, Russian |
| Number of OSD languages | 8 |
| Sustainability certificates | ErP |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in speaker(s) | Yes |
