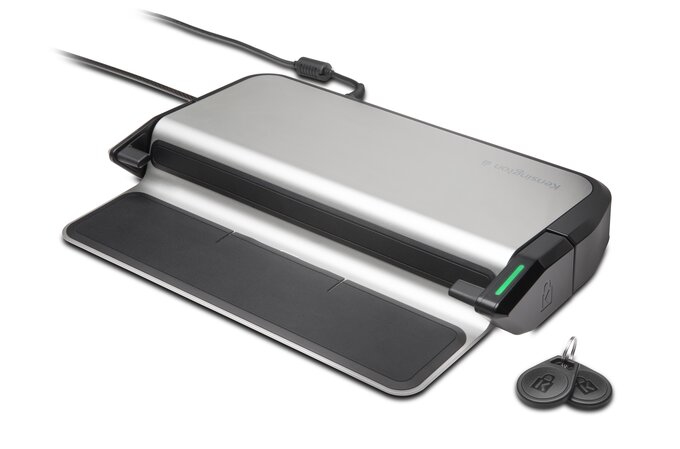

The LD4650P Single-User USB-C Dock with K-Fob™ Smart Lock combines Kensington’s thoroughly tested universal USB-C docking technology with next generation encrypted digital laptop locking technology to deliver a game-changing 2-in-1 docking and locking solution for Windows users. Get more compatibility and productivity while reducing laptop theft and improving compliance with corporate security protocols. Secures thin and light laptops 11-15” in size, including models from Dell, HP, Lenovo and other manufacturers.
Best for: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to 1080p
Warranty: 3 Years
Connection technology: USB-C Alt Mode
USB-C power delivery: Supports USB-C PD 3.0 (60W of laptop charging)
Compatibility: Windows 10
No. of monitors supported: 2
Video output: 2 x DisplayPort++
Maximum resolution supported: Single monitor (2560 x 1440 @ 60Hz) and Dual monitors (1920 x 1080 @ 60Hz)
Plug & play installation without need for drivers or downloads
System requirements: Host device must support Power Delivery and DisplayPort Alt mode over USB-C
Products specifications
| Width | 320 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.47 kg |
| Compatible operating systems | Windows 10 |
| USB ports quantity | 4 |
| Harmonized System (HS) code | 84733020 |
| Package width | 362 mm |
| Package depth | 320 mm |
| Package height | 83 mm |
| Package weight | 3.34 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 1.5 A |
| Output voltage | 5 - 20 V |
| Output current | 3 A |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | No |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | Full HD |
| Maximum digital resolution | 2560 x 1440 pixels |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, IC, RCM, WEEE, REACH & IMDA |
| Cables included | USB |
| Windows operating systems supported | Yes |
