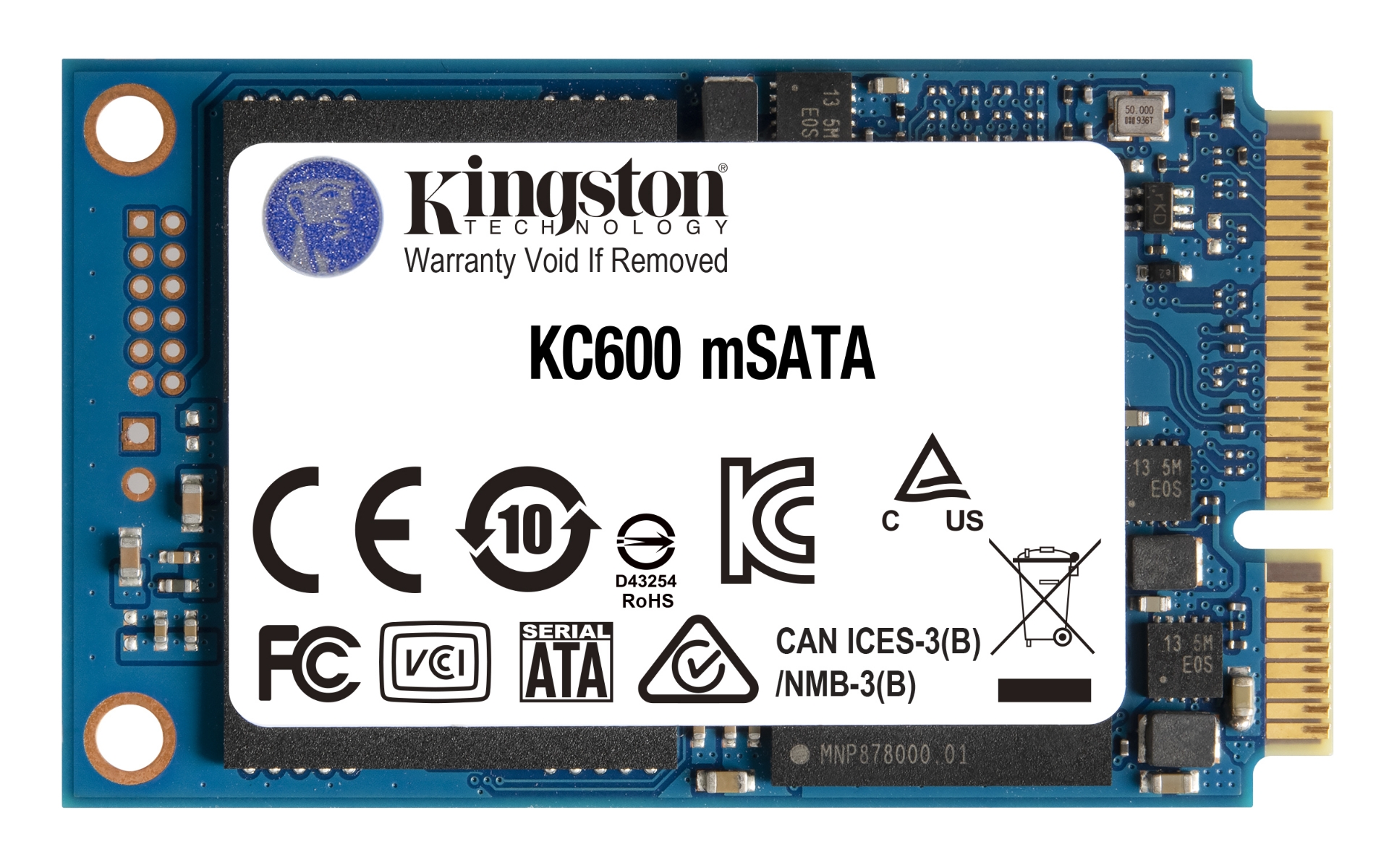

Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.
Remarkable performance
Using the latest 3D TLC NAND technology, it enables read/write speeds of up to 550/520MB/s.*
Full-security suite
Protect and secure your data with Kingston’s self-encrypting drive.
Easy installation/upgrade
KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.
Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**
Products specifications
| Security algorithms | 256-bit AES-XTS |
| SSD capacity | 256 GB |
| SSD form factor | mSATA |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 80000 IOPS |
| Controller type | SMI SM2259 |
| Mean time between failures (MTBF) | 1000000 h |
| TBW rating | 150 |
| Width | 29.9 mm |
| Depth | 50.8 mm |
| Height | 4.85 mm |
| Weight | 6 g |
| Country of origin | China |
| Master (outer) case width | 104.8 mm |
| Master (outer) case length | 206.4 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case height | 54 mm |
| Master (outer) case gross weight | 416.98 g |
| Products per master (outer) case | 25 pc(s) |
| Package width | 45.7 mm |
| Package depth | 7.62 mm |
| Package height | 95.2 mm |
| Package weight | 13.94 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
| Power consumption (read) | 1.2 W |
| Power consumption (write) | 2.4 W |
| Power consumption (average) | 0.1 W |
| Power consumption (idle) | 0.08 W |
