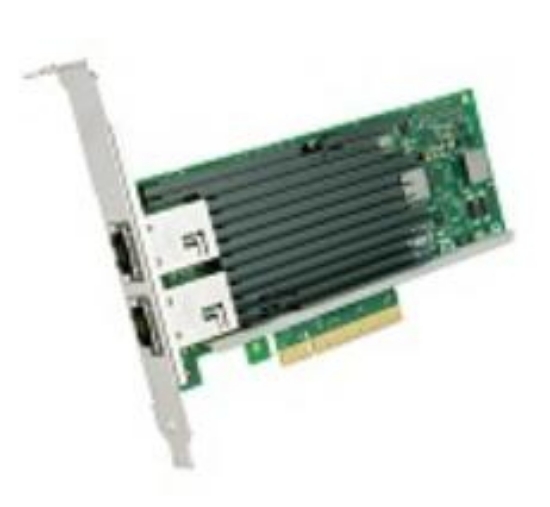

Intel's new Intel Ethernet X540 Converged Network Adapters is the most flexible and scalable Ethernet adapter for today's demanding data center and cloud environments.
- PCIe 2.1 x8, 5.0GT/s
- Supports RJ-45 Category-6 up to 55 m; Category-6A up to 100 m
- Low profile and full height bracket
- VMDq, PCI-SIG, SR-IOV capable
- On-chip QoS and traffic management
- Flexible port partitioning
- Intelligent offloads
- Support iSCSI, FCoE, NFS protocols
Products specifications
| Width | 68.1 mm |
| Depth | 17.8 mm |
| Height | 167.4 mm |
| Weight | 270 g |
| Harmonized System (HS) code | 85176990 |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Product colour | Green, Silver |
| Internal | Yes |
| Compatible products | X540-T2 |
