The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5210 is a low profile PCIe adapter, and the M5210e is integrated in servers such as the x3750 M4 and x3650 M4 HD. The two controllers share a common set of upgrades, simplifying inventory management.

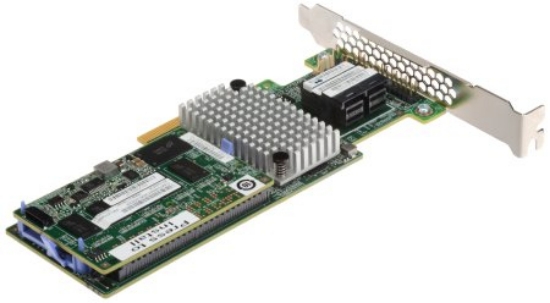

The following figure shows the ServeRAID M5210 Controller with an optional cache installed.
Products specifications
| Harmonized System (HS) code | 84733080 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express |
| PCI Express slots version | 3.0 |
| RAID levels | 5 |
| Data transfer rate | 12 Gbit/s |
| SSD support | Yes |
| Internal memory type | DDR3 |
| Memory clock speed | 1866 MHz |
