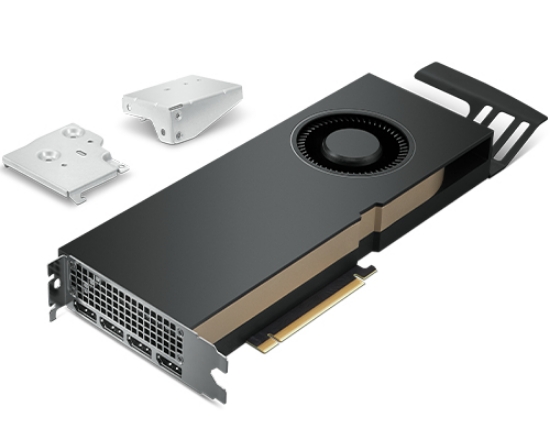

The NVDIA RTX A5000 card is a dual-slot, 10.5 inch PCI Express Gen4 graphics solution based on the NVDIA Ampere architecture. It is an actively cooled product capable of 230W maximum graphics power. Based on the NVDIA GPU architecture, RTXA5000 delivers hardware-accelerated ray tracing, revolutionary AI feature, advanced shading, and powerful simulation capabilities to creative professionals. With the industry’s most expansive graphics memory footprint comprised of 24GB of GDDR6 memory, RTX A5000 enables the most graphics-intensive applications run with the highest level of user experience, even with largest of data set.
Products specifications
| Weight | 1.05 kg |
| Length | 326.3 mm |
| Depth | 51.3 mm |
| Height | 111.3 mm |
| Harmonized System (HS) code | 84733020 |
| Package width | 490 mm |
| Package depth | 220 mm |
| Package height | 92 mm |
| Package weight | 1.8 kg |
| Package type | Box |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 230 W |
| Interface type | PCI Express x16 4.0 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
| Certification | BSMI, FCC, ICES, CE, VCCI, KCC, RCM, CB, Morocco |
| TV tuner integrated | No |
| DirectX version | 12.07 |
| Shader model version | 5.17 |
| OpenGL version | 4.68 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Windows operating systems supported | Windows 10 |
| CUDA | Yes |
| CUDA cores | 8192 |
| Graphics processor family | NVIDIA |
| Graphics processor | RTX A5000 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | NVLink |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 384 bit |
| Memory bandwidth (max) | 768 GB/s |
