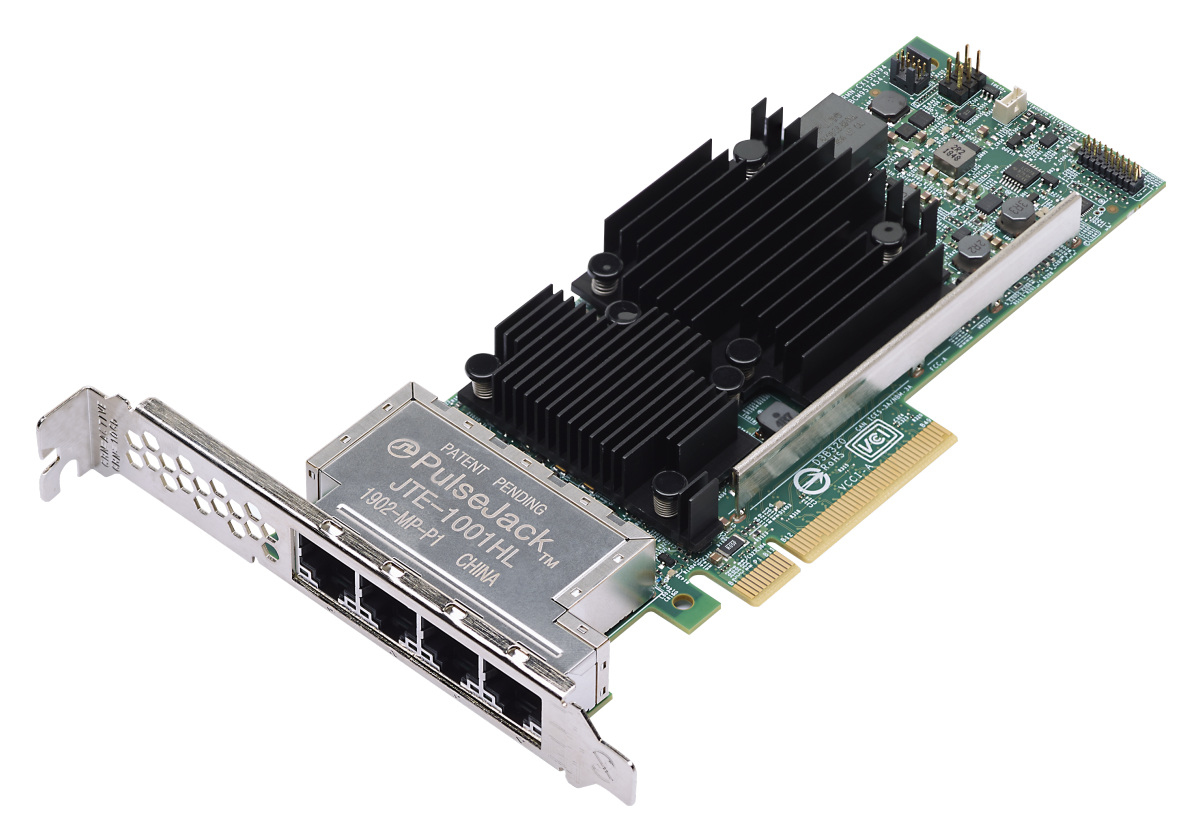

The ThinkSystem Broadcom 57454 10GBASE-T Ethernet Adapters are high-performance 10 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor.
This product guide provides essential presales information to understand the adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Broadcom 10 GbE network adapters and consider their use in IT solutions.
Products specifications
| Width | 167 mm |
| Height | 63 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 3.0 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Component for | Server/workstation |
| Internal | Yes |
| Certification | EN 55022:2010 + AC:2011 Class B (CE EU) EN 55024 Class B (EU) CFR47, Part 15 Class B (USA FCC) ICES-003 Class B (Canada) CNS13438 Class B (BSMI Taiwan) RRL KN22 Class B (S. Korea) KN24 (ESD) (S. Korea) V-3 / 2014 / 04 (VCCI Japan) EN 60950-1 UL 60950-1 CTUVus UL CSA 22.2 No. 950 CNS14336 Class B ICES 003 UL 1977 (connector safety) UL 796 (PCB wiring safety) UL 94 (flammability of parts) |
