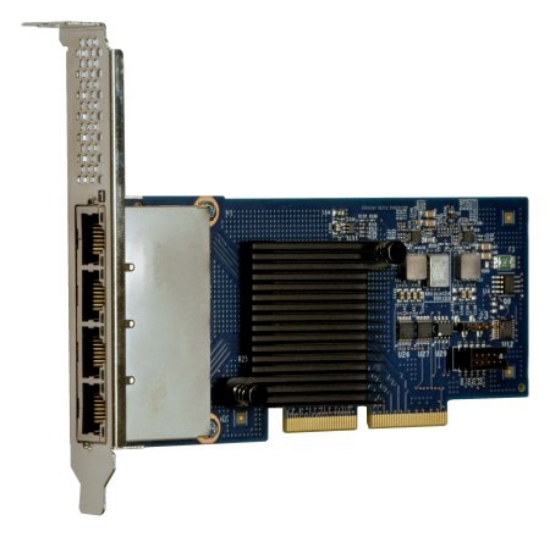

Intel I350 Gigabit Ethernet adapters from Lenovo build on Intel's history of delivering Ethernet products with flexible design and robust driver support. Available in either 1-port fiber configuration or a 2/4-port copper configuration, these adapters offer excellent price/performance, enhanced power-savings, and market-leading I/O virtualization technologies that includes SRIOV and VMDq.
This product guide provides essential presales information to understand the I350 Gigabit Ethernet offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about I350 Gigabit Ethernet adapters and consider their use in IT solutions.
Products specifications
| Width | 17 mm |
| Depth | 135 mm |
| Height | 69 mm |
| Flow control support | Yes |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Receive Side Scaling (RSS) | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 2.0 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Component for | Server |
| Product colour | Black, Blue |
| Internal | Yes |
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware ESXi 5.0 VMware ESXi 5.1 VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
