For the SR590 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and an additional system fan.
Products specifications
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.2 |
| Scalability | S4S |
| Embedded options available | No |
| Processor package size | 76 x 56.5 mm |
| Harmonized System (HS) code | 85423119 |
| Tcase | 81 °C |

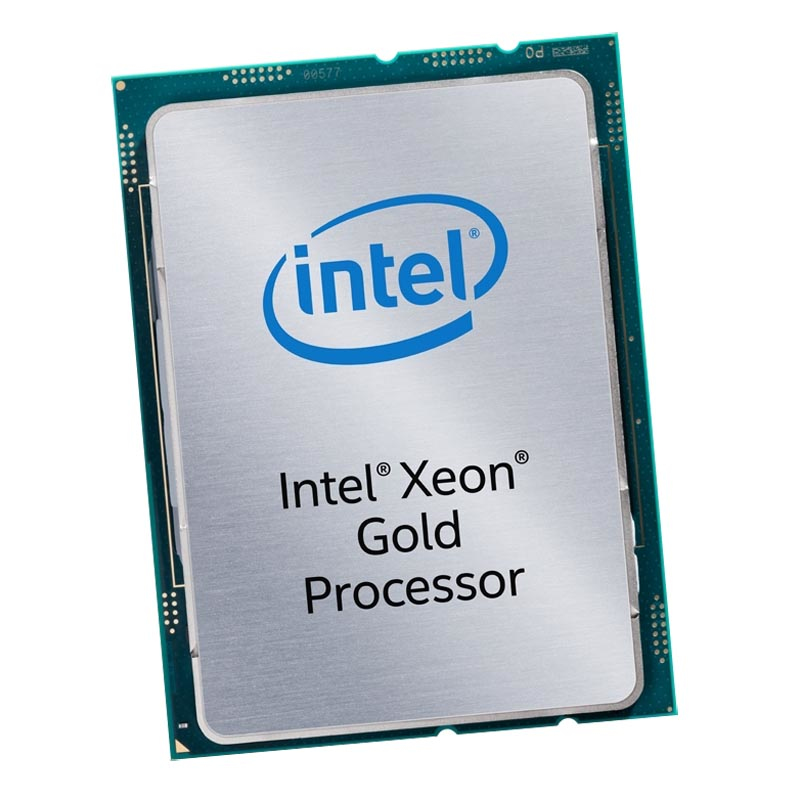

| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 5120 |
| Processor base frequency | 2.2 GHz |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 14 |
| Processor socket | LGA 3647 (Socket P) |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 19.25 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 105 W |
| Cooler included | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| On-board graphics card | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Conflict-Free processor | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
