A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it’s all powered by Microsoft Azure Sphere.
Products specifications
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 460 g |
| Harmonized System (HS) code | 84733020 |
| Package width | 270 mm |
| Package depth | 195 mm |
| Package height | 85 mm |
| Package weight | 1.23 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Power source type | DC |
| Input current | 6.75 A |
| Power consumption (max) | 100 W |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Data transfer rate | 40 Gbit/s |
| Number of displays supported | 4 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Certification | cULus, FCC, ICES, NOM |

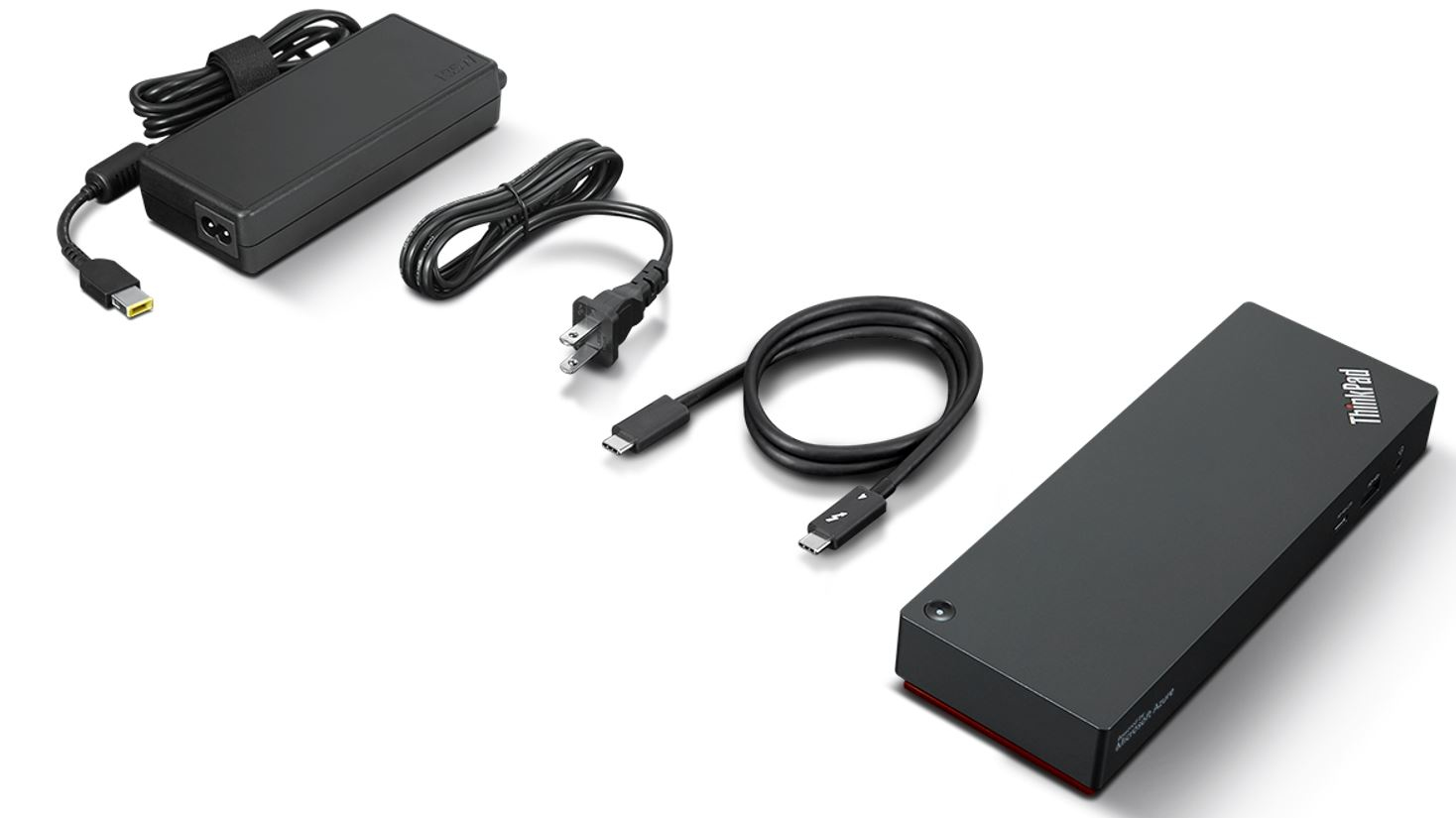

| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Windows operating systems supported | Yes |
