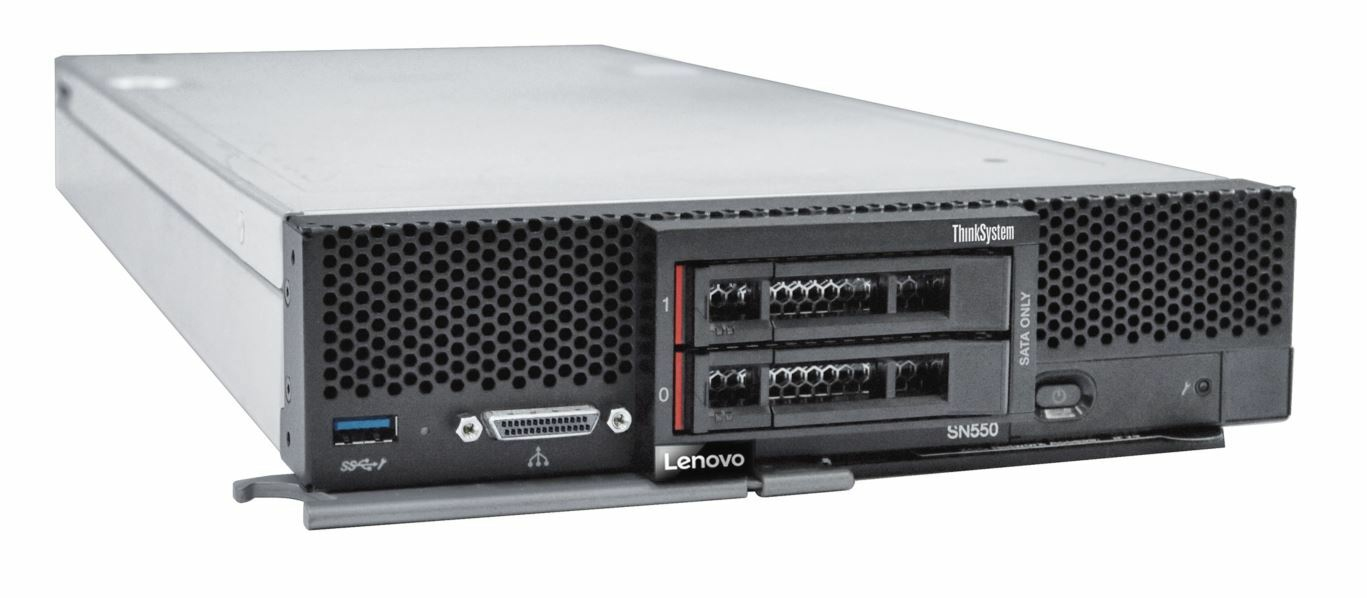

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server now supports the second-generation Intel Xeon Processor Scalable Family of processors.
This product guide provides essential information to understand the SN550 offering, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SN550 compute node and consider its use in IT solutions.
Products specifications
| Width | 218 mm |
| Depth | 507 mm |
| Height | 56 mm |
| Weight | 7.1 kg |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Performance management | XClarity Controller |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor model | 5218 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 22 MB |
| Motherboard chipset | Intel® C624 |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Number of SSDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
| Optical drive type | No |
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200 |
| Maximum graphics card memory | 16 MB |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
