Sorry - this product is no longer available

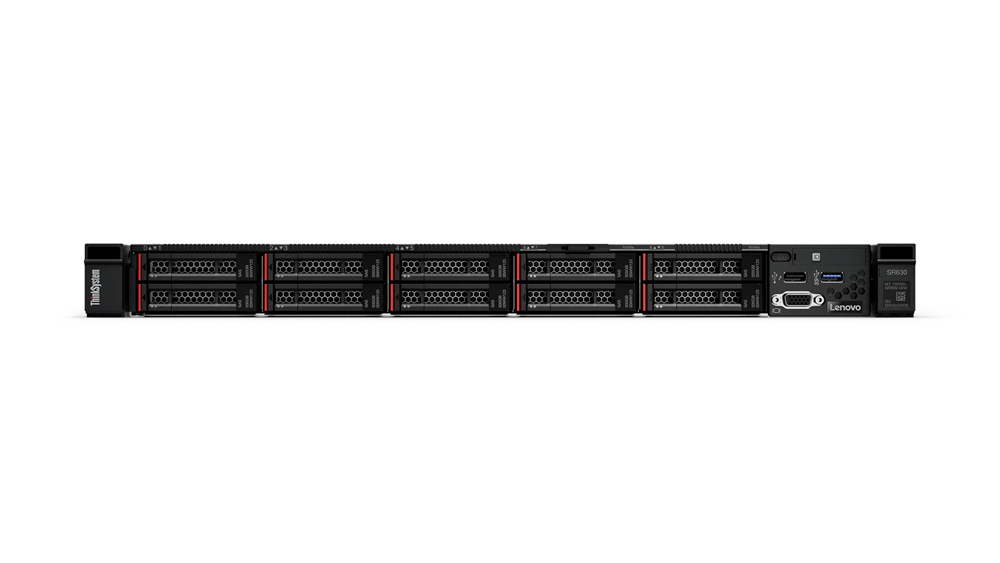

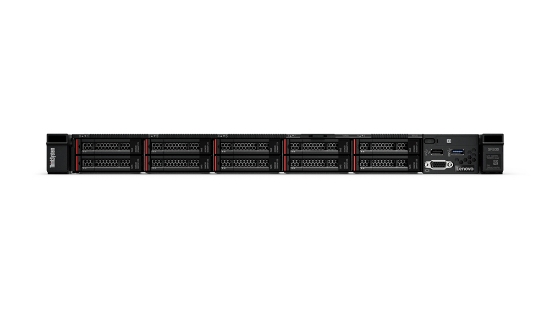

Lenovo ThinkSystem SR630 server Rack (1U) Intel Xeon Silver 4210R 2.4 GHz 32 GB DDR4-SDRAM 750 W

Be the first to review this product
Lenovo ThinkSystem SR630. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4210R. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
Manufacturer: Lenovo
SKU: 7X02A0F4EA
Vendor: Aspects
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.

Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.

Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€5401.31 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.

Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.

Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.

Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Products specifications
Weight & dimensions
Width434 mm
Depth715 mm
Height43 mm
Logistics data
Harmonized System (HS) code84714100
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of main power supplies1
Power supply input frequency50 - 60 Hz
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Network
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Design
Chassis typeRack (1U)
Product colourBlack, Silver
Rack mountingYes
Performance
Performance managementXClarity
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version1.2
Sustainability
Sustainability certificatesENERGY STAR
Processor
Processor manufacturerIntel
Processor familyIntel Xeon Silver
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model4210R
Processor frequency2.4 GHz
Processor boost frequency3.2 GHz
Processor cores10
Processor cache13.75 MB
Number of processors installed1
Thermal Design Power (TDP)100 W
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads20
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase84 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsSSE4.2, AVX, AVX 2.0, AVX-512
Scalability2S
Embedded options availableYes
Memory
Internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory layout (slots x size)1 x 32 GB
Storage
HDD interfaceSerial ATA, Serial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60
Supported RAID controllers930-8i 2GB
Hot-swapYes
Graphics
On-board graphics card modelNot available
Expansion slots
PCI Express slots version3.0
Software
Compatible operating systemsMicrosoft Windows Server 2016 and 2019; Red Hat Enterprise Linux 7; SUSE Linux Enterprise Server 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID197098
*
*
*
Products specifications
Weight & dimensions
Width434 mm
Depth715 mm
Height43 mm
Logistics data
Harmonized System (HS) code84714100
Power
Redundant power supply (RPS) supportYes
Power supply750 W
Number of redundant power supplies supported2
Number of main power supplies1
Power supply input frequency50 - 60 Hz
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Network
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Design
Chassis typeRack (1U)
Product colourBlack, Silver
Rack mountingYes
Performance
Performance managementXClarity
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version1.2
Sustainability
Sustainability certificatesENERGY STAR
Processor
Processor manufacturerIntel
Processor familyIntel Xeon Silver
Processor generation2nd Generation Intel® Xeon® Scalable
Processor model4210R
Processor frequency2.4 GHz
Processor boost frequency3.2 GHz
Processor cores10
Processor cache13.75 MB
Number of processors installed1
Thermal Design Power (TDP)100 W
Processor socketLGA 3647 (Socket P)
Processor lithography14 nm
Processor threads20
Processor operating modes64-bit
Processor codenameCascade Lake
Tcase84 °C
Maximum internal memory supported by processor1.02 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Execute Disable BitYes
Maximum number of PCI Express lanes48
Processor package size76.0 x 56.5 mm
Supported instruction setsSSE4.2, AVX, AVX 2.0, AVX-512
Scalability2S
Embedded options availableYes
Memory
Internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory layout (slots x size)1 x 32 GB
Storage
HDD interfaceSerial ATA, Serial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60
Supported RAID controllers930-8i 2GB
Hot-swapYes
Graphics
On-board graphics card modelNot available
Expansion slots
PCI Express slots version3.0
Software
Compatible operating systemsMicrosoft Windows Server 2016 and 2019; Red Hat Enterprise Linux 7; SUSE Linux Enterprise Server 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.
Processor special features
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Processor ARK ID197098
