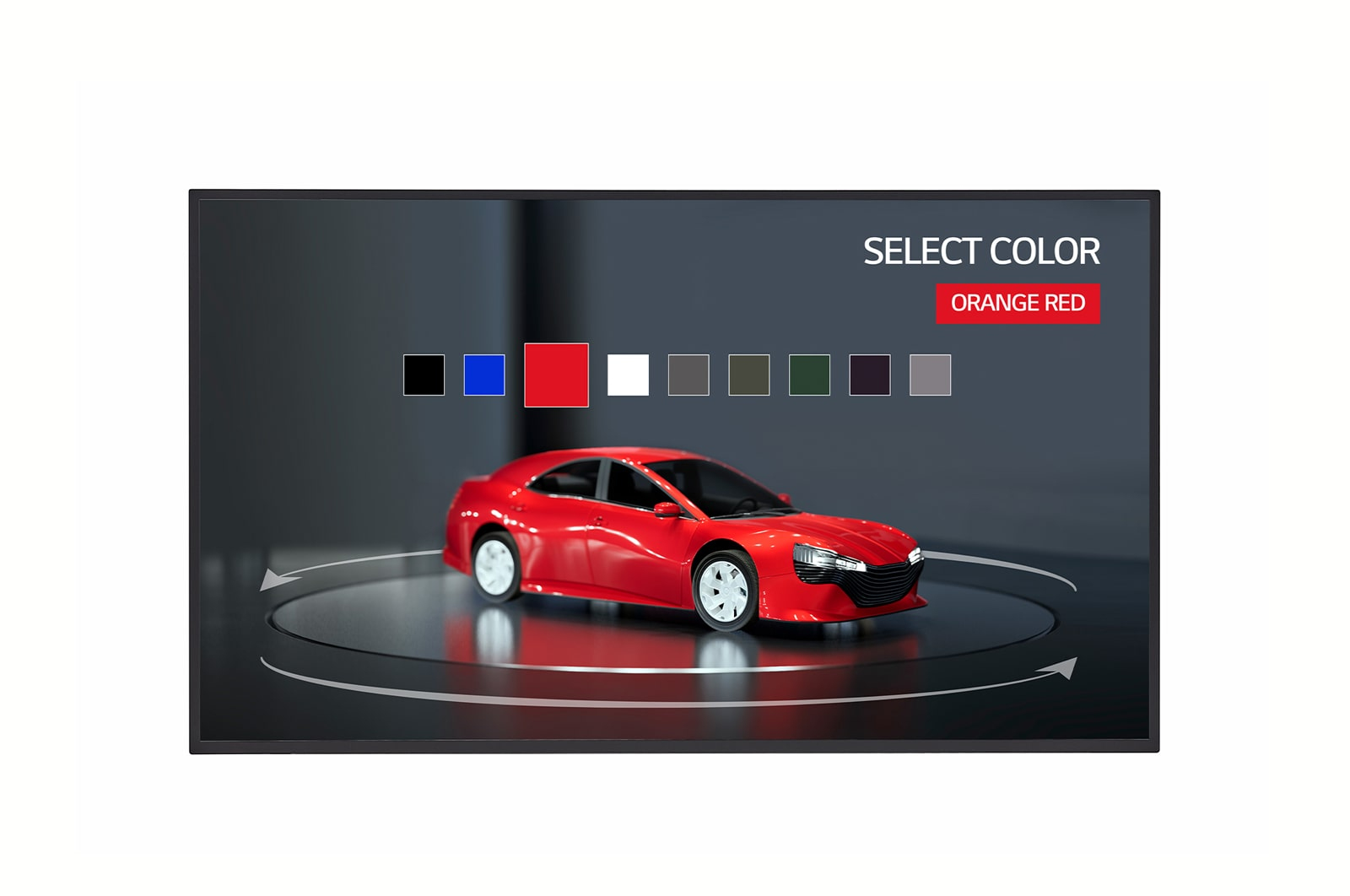

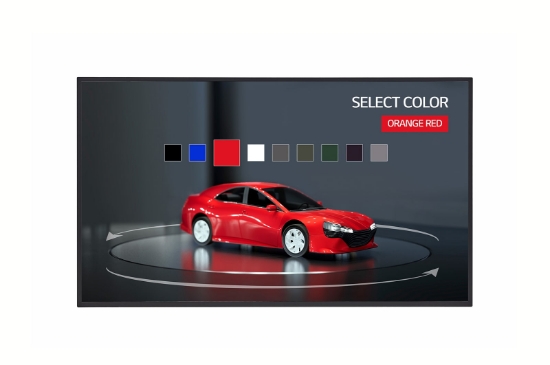

New In-Cell Touch Open Frame for Optimal Customization
Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, TNF5P implements clear picture quality without milk effects caused by additional touch sensor film parts.
Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
24hrs / 7days
TNF5P’s excellent durability allows for use in kiosks that require a full day of operation.
Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
45-degree Tilt (Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The TNF5P provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC* and web engine, is available on TNF5P for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Products specifications
| Display width | 723 mm |
| Display depth | 39.1 mm |
| Display height | 419.4 mm |
| Display weight | 5.8 kg |
| Temperature indicator | Yes |
| Playback modes | Rotation |
| Package width | 812 mm |
| Package depth | 142 mm |
| Package height | 510 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Power consumption (typical) | 48 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Heat dissipation | 164 BTU/h |
| HDMI ports quantity | 2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.13 cm |
| Bezel width (side) | 1.13 cm |
| Bezel width (top) | 1.13 cm |
| HDCP | Yes |
| HDCP version | 1.4 |
| Security algorithms | SNMP |
| Panel type | IPS |
| LED backlight | Yes |
| Display diagonal | 81.3 cm (32") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Response time | 9 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Panel life | 50000 h |
| Haze rate | 25% |
| Internal memory | 8 GB |
| Operating system installed | WebOS |
| Operating system version | 6.0 |
