See the unseen

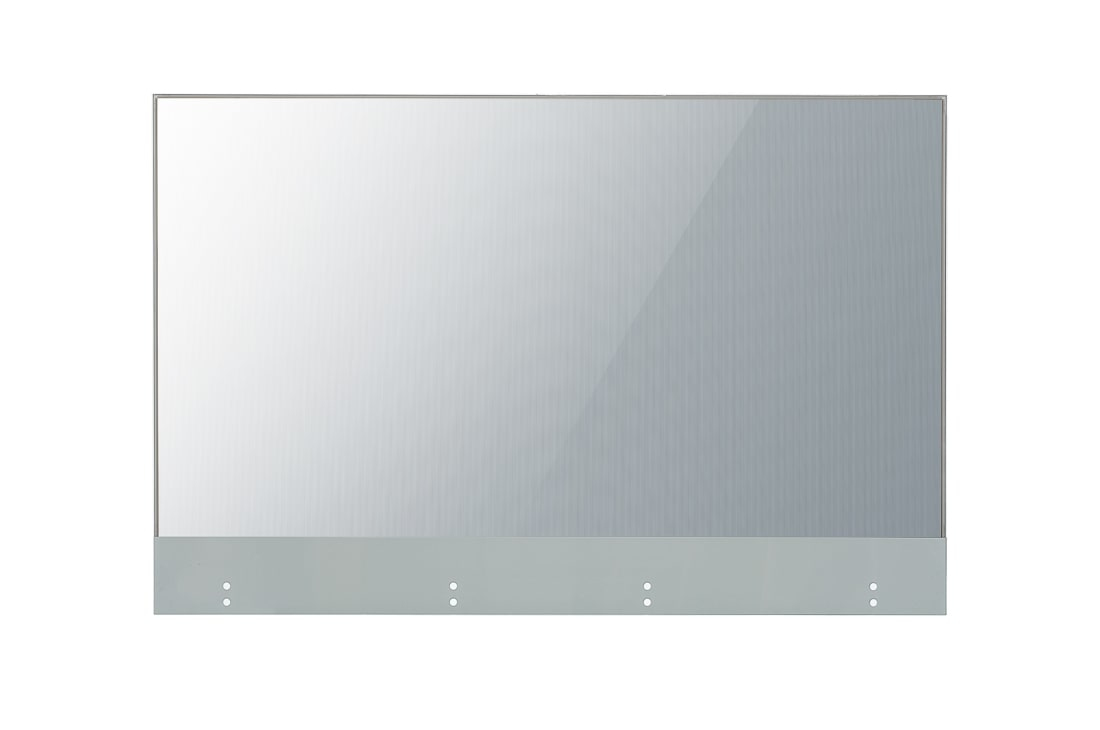

LG Transparent OLED
LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.
High Transparency
LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
Expandable Design
(2×N Tiling)
LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
Products specifications
| Heat dissipation (max) | 955.39 BTU/h |
| Display width | 12255 mm |
| Display depth | 49 mm |
| Display height | 8101 mm |
| Display weight | 11.6 kg |
| Base depth | 3.47 cm |
| Base height | 2.38 m |
| Base weight | 3.4 kg |
| Harmonized System (HS) code | 85285210 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Power consumption (typical) | 250 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 171 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Heat dissipation | 853.03 BTU/h |
| Energy efficiency scale | A to G |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | No |
| Operating hours (hours/days) | 18/7 |
| Display diagonal | 139.7 cm (55") |
| Display technology | OLED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Contrast ratio (typical) | 150000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Colour saturation | 120% |
| Surface hardness | Hard coating (2H) |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, LAN (RJ-45), RS-232 |
| Built-in speaker(s) | No |
