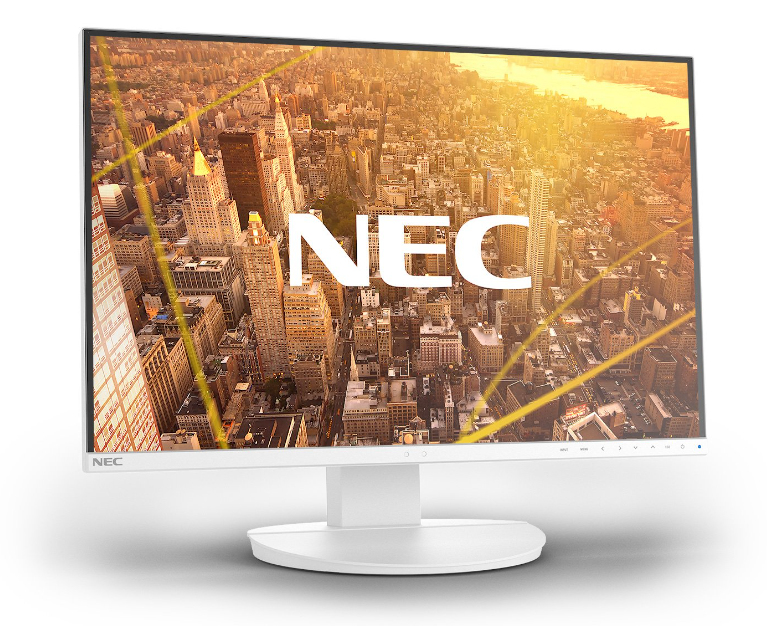

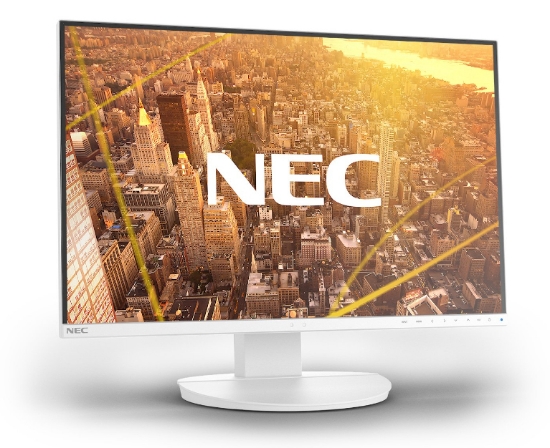

NEC MultiSync® EA231WU Ultra-Narrow Bezel – 16:10 format in affordable screen size
NEC’s new 22.5-inch display in 16:10 aspect ratio is one of the first to enter the market in its size class.
The new display is outfitted to use the maximum vertical screen space and is designed to suit professional environments that need to project vertically-oriented documents. The EA231WU offers the same vertical screen workspace as a 24,” 16:9 screen without compromising quality. The display comes with best in class ergonomics that meet all safety regulations. The height of the screen adjusts from desk level up to 150 mm, so it is in line with the new standards for creating an ergonomic workspace.
Products specifications
| Width (with stand) | 498.9 mm |
| Depth (with stand) | 250 mm |
| Height (with stand) | 337.2 mm |
| Weight (with stand) | 8.3 kg |
| Width (without stand) | 498.9 mm |
| Depth (without stand) | 45.6 mm |
| Height (without stand) | 319.7 mm |
| Weight (without stand) | 5.9 kg |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Certification | CE; EAC; ErP; ISO 9241-307 (pixel failure class I); PSB; RoHS; TCO 7.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
| Harmonized System (HS) code | 85285210 |
| Package type | Box |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Power consumption (typical) | 13 W |
| Power consumption (PowerSave) | 0.31 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.9 A |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 391613 |
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Market positioning | Business |
| Product colour | White |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Panel type | IGZO |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 640, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Response time (fast) | 6 ms |
| Pixel pitch | 0.25 x 0.25 mm |
| Horizontal scan range | 31.5 - 70 kHz |
| Vertical scan range | 50 - 60 Hz |
| Stand included | Yes |
| Cables included | AC, DVI, DisplayPort, VGA |
| Quick start guide | Yes |
| Manual | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -170 - 170° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
