Digital Signage and real-time information deployed easily
Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

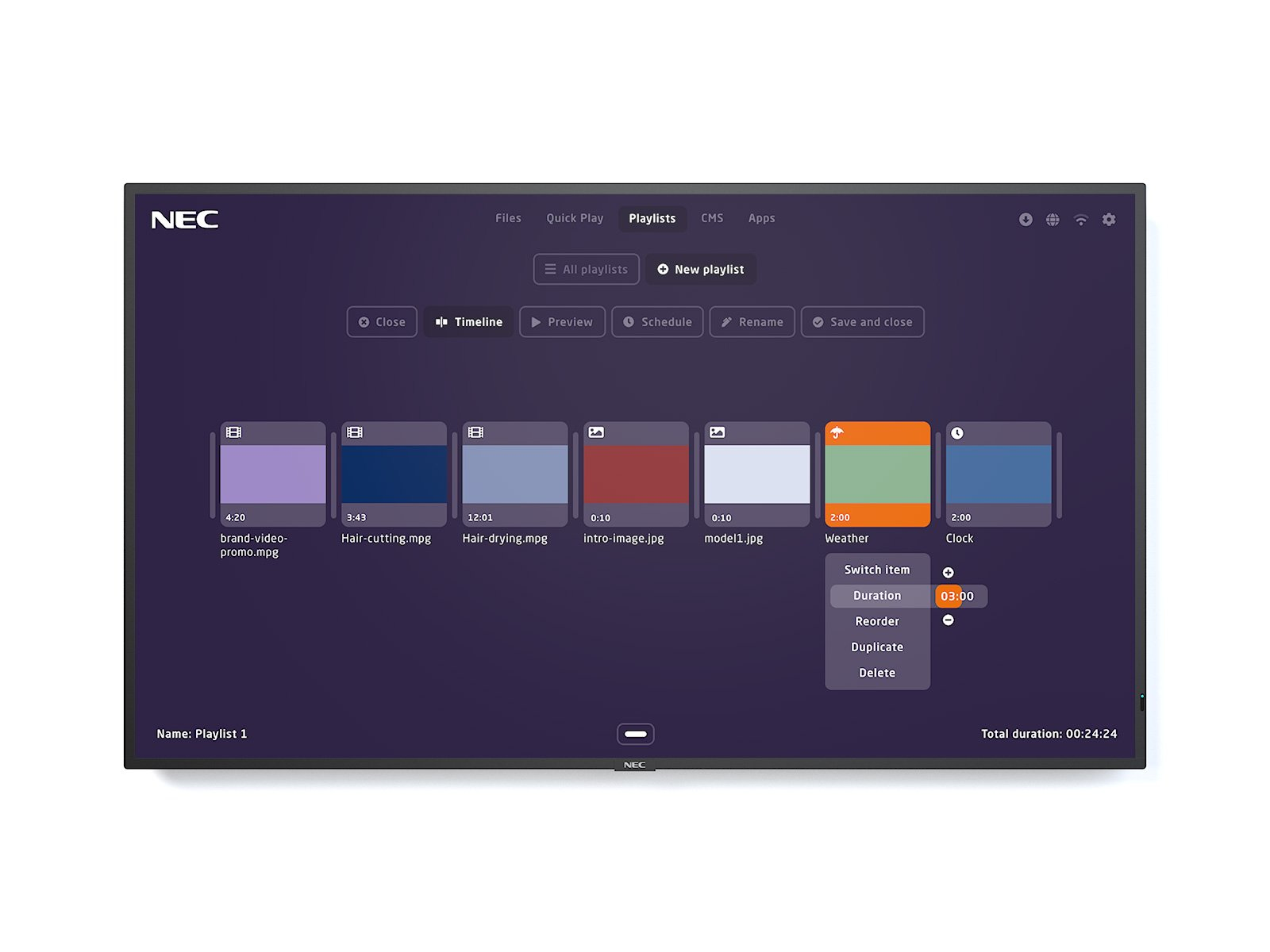

The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.
Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.
Products specifications
| Width | 1241.8 mm |
| Depth | 62.6 mm |
| Height | 712.6 mm |
| Weight | 19.8 kg |
| Harmonized System (HS) code | 85285210 |
| Package width | 1430 mm |
| Package depth | 250 mm |
| Package height | 920 mm |
| Package weight | 29.4 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 120 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 118 kWh |
| Energy consumption (HDR) per 1000 hours | 91 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Purpose | Universal |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| LED backlighting type | Direct-LED |
| Display diagonal | 139.7 cm (55") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 26 - 135 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 1% |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A72 |
| Processor frequency | 1.5 GHz |
| Internal storage capacity | 32 GB |
| Video formats supported | AVI, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPG, VOB, VP8, VP9, WMV |
| Audio formats supported | AAC, AC3, MP3 |
| Image formats supported | JPEG, JPG, PNG |
