Bring your walls to life

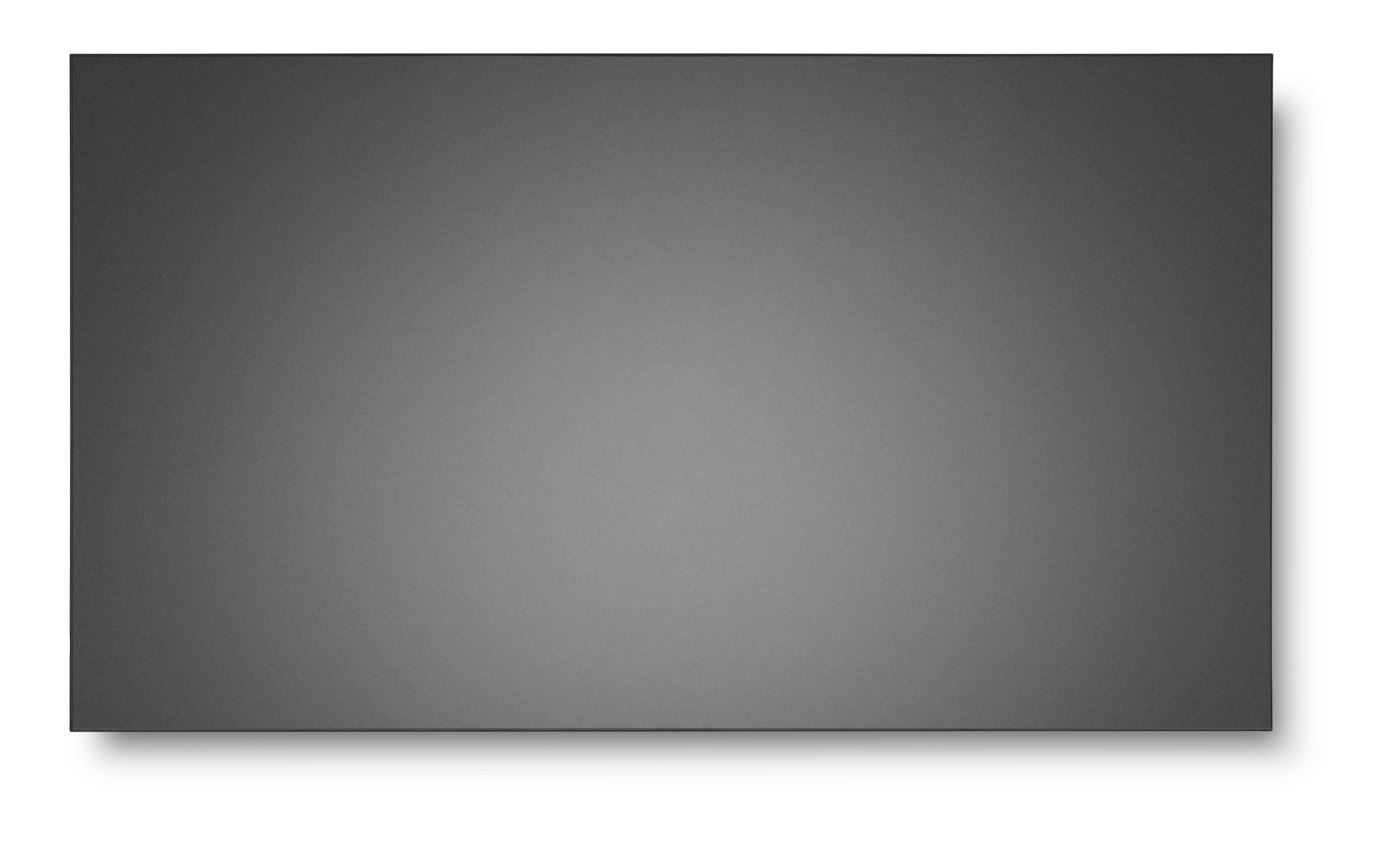

For the most engaging and creative visual experiences, the 55” Multisync® UN552S video wall display offers better image quality, easier installation and a reliable longer-lasting performance.
Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 700cd/m² display brightness and an anti-glare surface delivers the best readability with no annoying reflections even in bright ambient light conditions.
Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.
Products specifications
| Width | 1210.5 mm |
| Depth | 98.6 mm |
| Height | 681.2 mm |
| Weight | 25.8 kg |
| Harmonized System (HS) code | 85285210 |
| Cables included | AC, DisplayPort, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Power consumption (typical) | 234 W |
| Power consumption (standby) | 0.5 W |
| Compliance certificates | RoHS |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 3 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB ports quantity | 5 |
| HDCP | Yes |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (side) | 0.44 mm |
| Bezel width (top) | 0.44 mm |
| Bezel width (bottom) | 0.44 mm |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Product colour | Black |
| Purpose | Universal |
| Display technology | LCD |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Active display area (W x H) | 1209.63 x 680.34 mm |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 700 cd/m² |
| Contrast ratio (typical) | 1700:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Operating hours (hours/days) | 24/7 |
| Certification | BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI |
