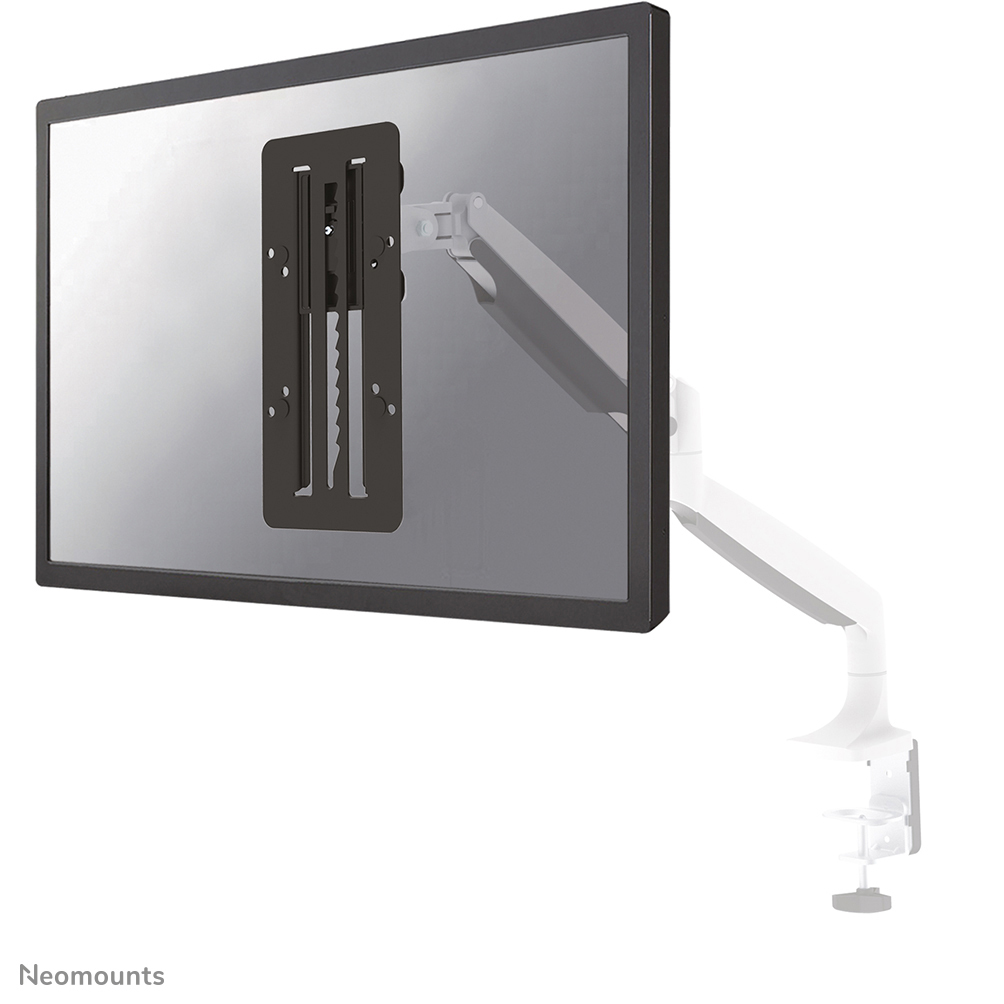

The Neomounts adapter, model FPMA-LIFT100BLACK, allows to adjust the height of a flatscreen. This adapter fits to all mounts with VESA75 or VESA100. Ideal to combine with wall mounts, desk mounts, and ceiling mounts. Combinations with the keyboard tray are also possible.
The height is adjustable from 0 to 17,7 cm. This offers maximum height range for the best viewing position.
The FPMA-LIFT100BLACK is suitable for screens up to 27" (68 cm). Weight capacity is 8 kg per screen. This product is suitable for screens with a VESA hole pattern 75x75 or 100x100 mm. Do you have a different (larger) hole pattern, you can solve this with one of our VESA conversion plates.
All installation material is included with the product.
Products specifications
| Height | 177 mm |
| Weight | 660 g |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 18.1 kg |
| Products per master (outer) case | 24 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 15.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 576 pc(s) |
| Package width | 117 mm |
| Package depth | 33 mm |
| Package height | 261 mm |
| Package net weight | 660 g |
| Package weight | 700 g |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 177 mm |
| Maximum weight capacity | 8 kg |
| Number of displays supported | 1 |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
