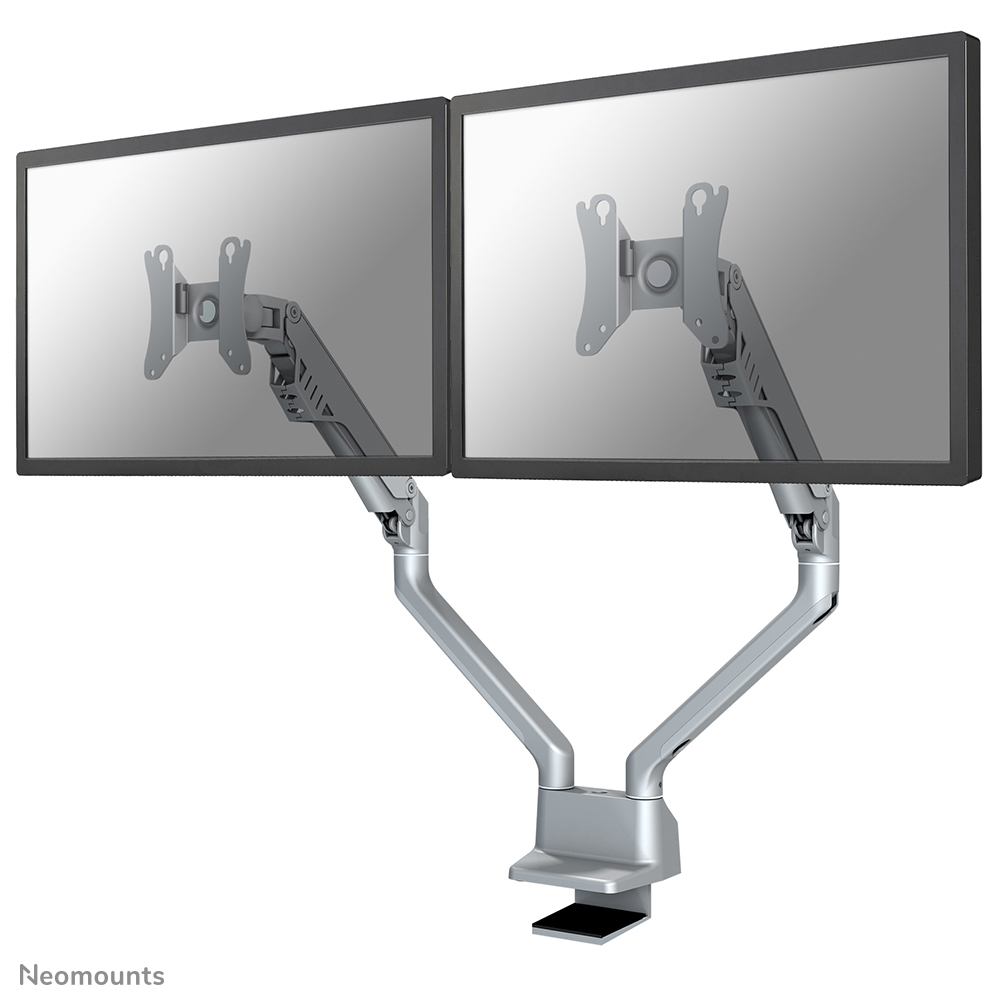

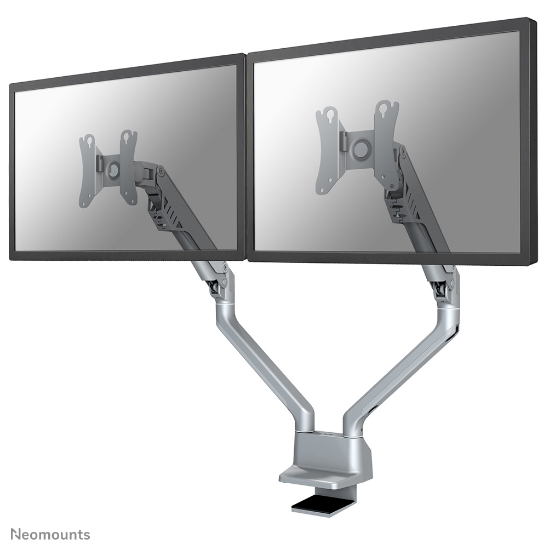

The Neomounts desk mount, model FPMA-D750DSILVER2 is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a topfix desk clamp or grommet.
Neomounts's versatile tilt (170°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is equipped with a 180° stop mechanism. The mount is easily height adjustable from 20 to 51 centimetres using a gas spring. Depth adjustable from 0 to 53 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D750DSILVER2 has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 2-8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Master (outer) case width | 510 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 530 mm |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 19.6 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per pack | 1 pc(s) |
| Package width | 480 mm |
| Package depth | 400 mm |
| Package height | 123 mm |
| Package net weight | 5.3 kg |
| Product colour | Silver |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 200 - 510 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 530 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -50 - 120° |
| Swivel angle | 180° |
| Angle of rotation | 180° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
