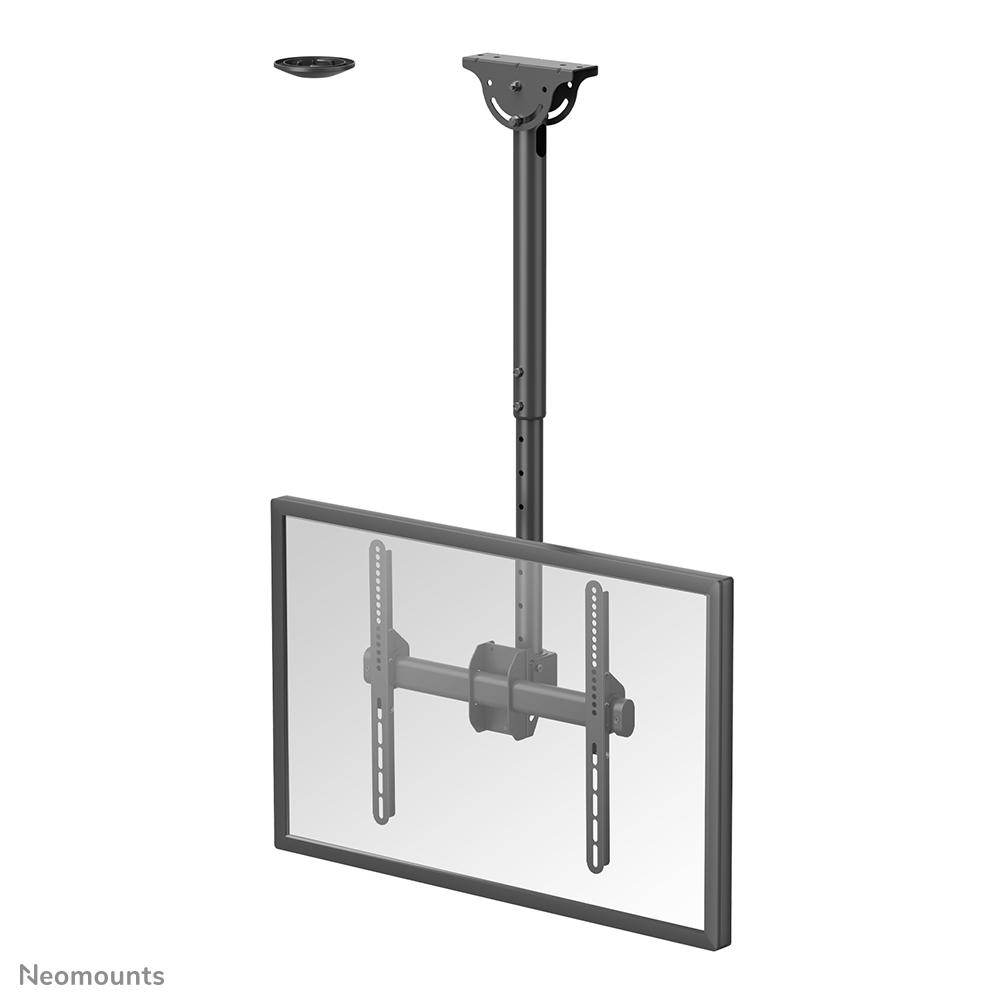

The Neomounts NM-C440BLACK ceiling mount is a tilt and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts' unique tilt (25°) and rotation (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 56 to 91 cm*. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.
Neomounts NM-C440BLACK has two pivot points and is suitable for screens up to 60". The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 400x400mm.
* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK and FPMA-C340BLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.
Products specifications
| Depth | 80 mm |
| Height | 910 mm |
| Weight | 5.83 kg |
| Country of origin | China |
| Master (outer) case net weight | 18 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 36 pc(s) |
| Quantity per master (outer) case | 3 pc(s) |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Package width | 310 mm |
| Package depth | 145 mm |
| Package height | 610 mm |
| Package weight | 5.8 kg |
| Product colour | Black |
| Housing material | Steel |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 560 - 910 mm |
| Tilt angle range | 0 - 25° |
| Swivelling | Yes |
| Swivel angle | 360° |
| Angle of rotation | 6° |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 25° |
| Depth adjustment | 8 cm |
| Distance to the wall (max) | 8 cm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,400 x 300,400 x 200 |
