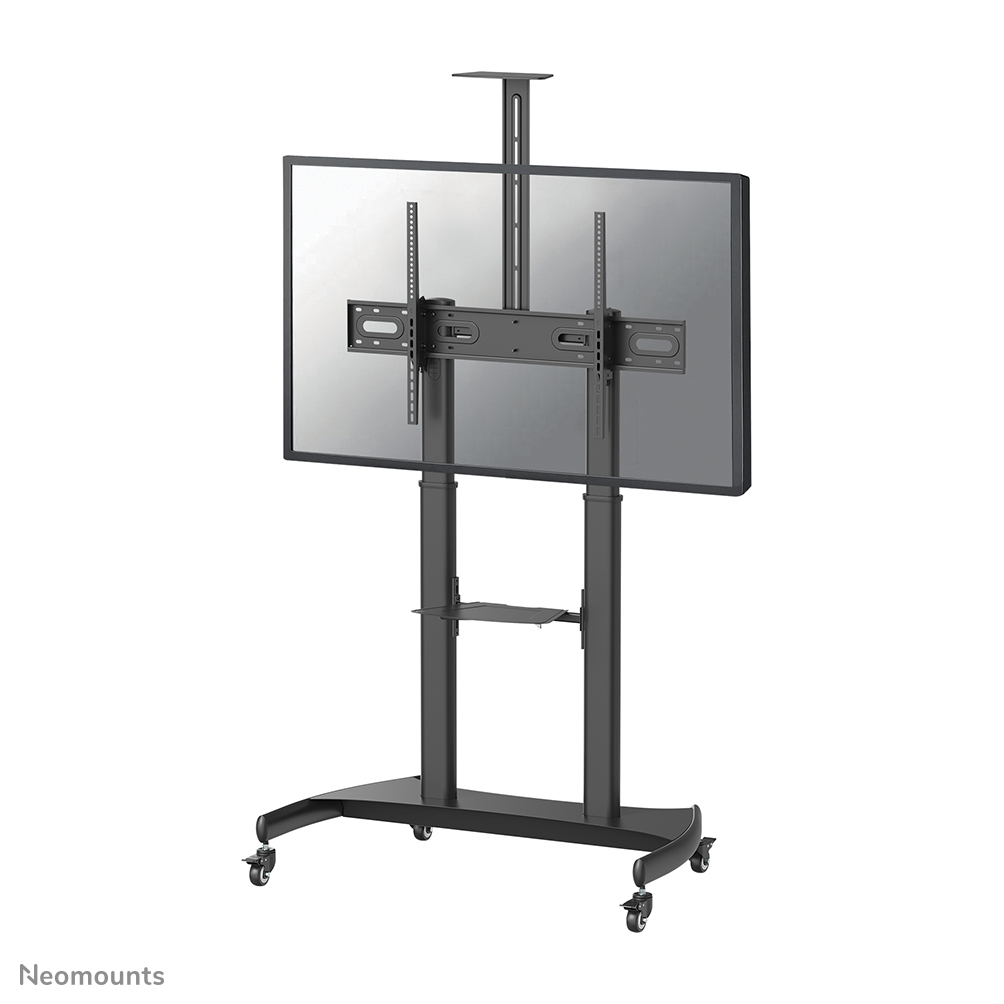

The Neomounts PLASMA-M1950E is a mobile floor stand for screens up to 100" and a weight capacity of 100 kg. This trolley allows you to use a large display over multiple rooms. Enjoy the optimal viewing positioning for both standing and seated audiences, wherever you like.
The versatile tilt (15°) technology allows the trolley to change to any desired viewing angle to fully benefit from the capabilities of the screen. The mount is manually adjustable in height from 134 to 166 cm, while the practical cable management conceals and routes cables from screen to floor.
The PLASMA-M1950E features four solid castor wheels with brake to easily move it to another location. Installation is easy and can be done quickly.
Products specifications
| Height | 1660 mm |
| Weight | 38.6 kg |
| Country of origin | China |
| Master (outer) case net weight | 41.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 8 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 805 mm |
| Master (outer) case length | 177 mm |
| Master (outer) case height | 1305 mm |
| Master (outer) case gross weight | 41.8 kg |
| Products per master (outer) case | 1 pc(s) |
| Package width | 177 mm |
| Package depth | 805 mm |
| Package height | 1305 mm |
| Package weight | 41.8 kg |
| Package net weight | 41.8 kg |
| Product colour | Black |
| Housing material | Steel |
| Height adjustment type | Manual |
| Height adjustment range | 1340 - 1660 mm |
| Cable management | Yes |
| Tilt angle | 15° |
| Maximum weight capacity | 100 kg |
| Minimum screen size | 152.4 cm (60") |
| Number of displays supported | 1 |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Floor |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 1000 x 600 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,900 x 600,300 x 100,1000 x 400,1000 x 600,350 x 350,400 x 200,500 x 500 |
