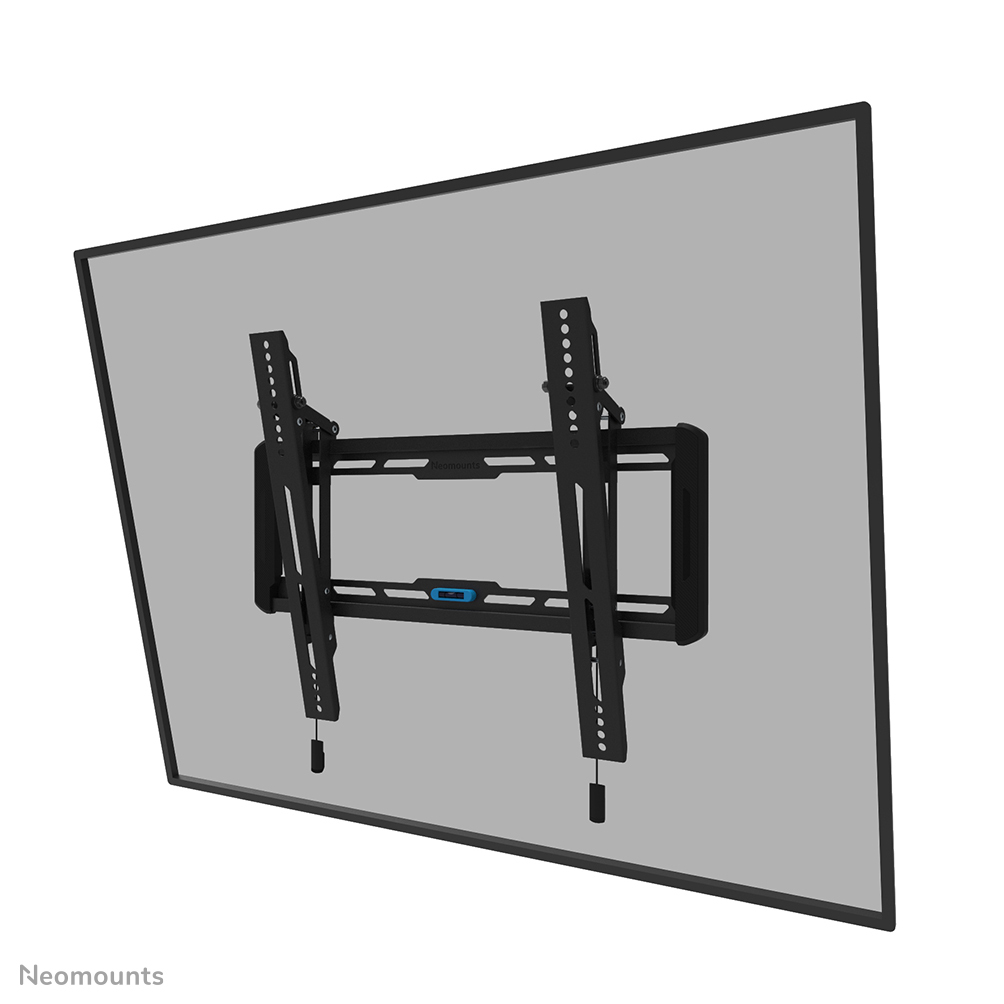

The Neomounts WL35-550BL14 LEVEL is a tiltable wall mount for flat screens up to 75" with a maximum weight capacity of 50 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle.
The LEVEL-550 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm.
The WL35-550BL14 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
Products specifications
| Width | 535 mm |
| Depth | 33 mm |
| Height | 425 mm |
| Weight | 2 kg |
| Master (outer) case width | 573 mm |
| Master (outer) case length | 285 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 15.8 kg |
| Master (outer) case net weight | 10.8 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 210 pc(s) |
| Package width | 558 mm |
| Package depth | 208 mm |
| Package height | 44 mm |
| Package weight | 2.6 kg |
| Country of origin | China |
| Package net weight | 2.6 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Product colour | Black |
| Housing material | Steel |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 12° |
| Distance to the wall (max) | 3.3 cm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200,150 x 200,200 x 150 |
| Mounting type | Wall |
