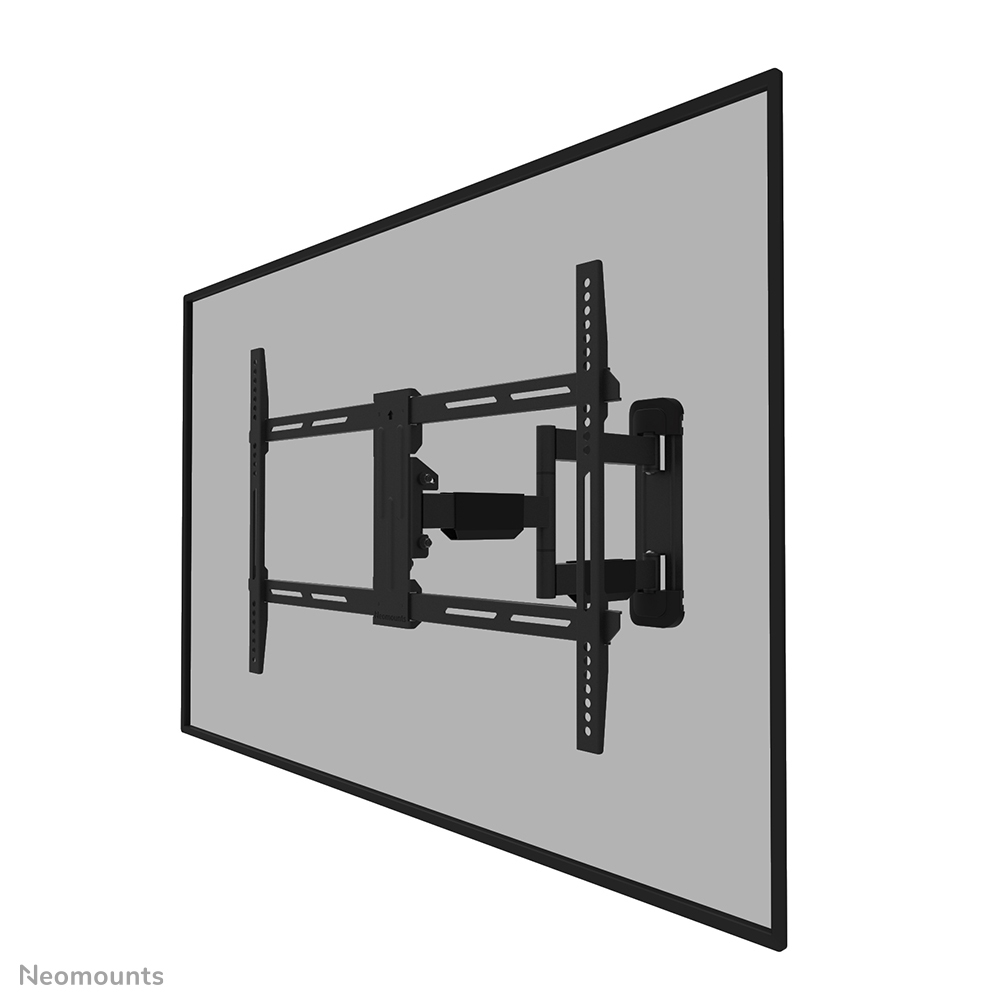

The Neomounts WL40-550BL16 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (+45°/-45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,3-49 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm.
The WL40-550BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Products specifications
| Width | 660 mm |
| Depth | 53 mm |
| Height | 436 mm |
| Weight | 5 kg |
| Master (outer) case width | 704 mm |
| Master (outer) case length | 185 mm |
| Master (outer) case height | 343 mm |
| Master (outer) case gross weight | 20.4 kg |
| Master (outer) case net weight | 18 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 72 pc(s) |
| Package width | 684 mm |
| Package depth | 323 mm |
| Package height | 56 mm |
| Package weight | 6.6 kg |
| Country of origin | China |
| Package net weight | 6.6 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Product colour | Black |
| Housing material | Steel |
| Mounting kit | Yes |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle | 40° |
| Swivel angle range | -45 - 45° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 49 cm |
| Distance to the wall (min) | 5.3 cm |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 101.6 cm (40") |
| Number of displays supported | 1 |
| Maximum screen size | 165.1 cm (65") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,400 x 200,200 x 150 |
| Mounting type | Wall |
