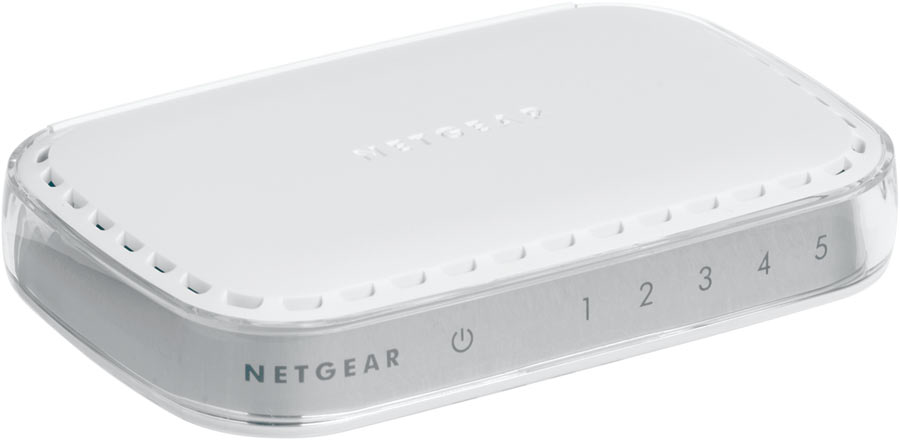

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small offices. They are easy to use and reliable. With these Plug-N-Play switches, you can expand your network connections to multiple devices instantly. This series of switches also implement various energy saving technologies, helping you save power and money.
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Available in plastic or metal enclosures
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Fan-less design for quiet operation
Products specifications
| Width | 118 mm |
| Depth | 73 mm |
| Height | 30 mm |
| Weight | 100 g |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Power consumption (max) | 3.7 W |
| Certification | FCC Class B C-Tick, CE Mark |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| MAC address table | 2048 entries |
| Jumbo frames support | Yes |
| Rack mounting | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Yes |
| Compatible operating systems | Windows, Mac OS, NetWare, Linux |
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 6421778 h |
| Power over Ethernet (PoE) | No |
