Sorry - this product is no longer available

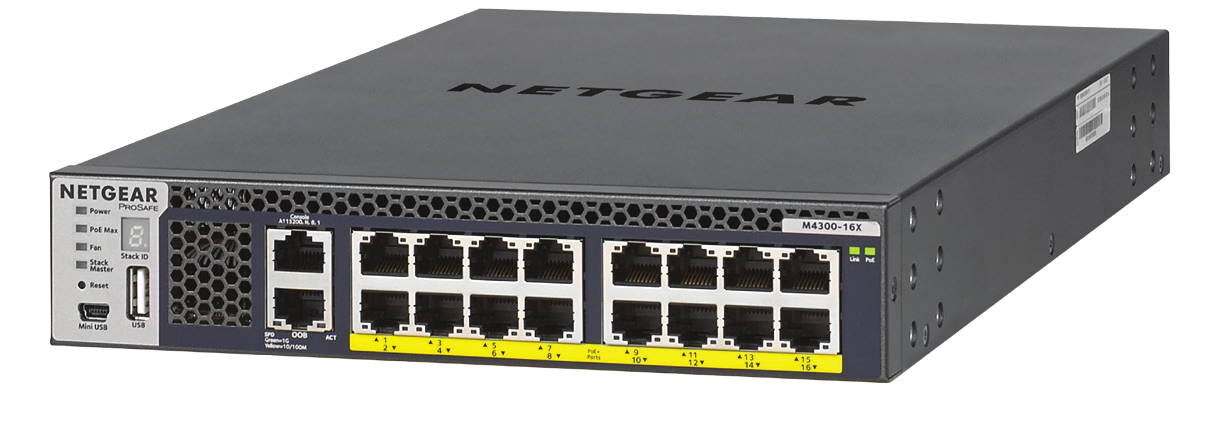

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

NETGEAR M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Manufacturer: Netgear
SKU: XSM4316PB-100NES
Vendor: Aspects
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€2832.84 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Products specifications
Weight & dimensions
Width212 mm
Depth345 mm
Height44 mm
Weight3.22 kg
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Heat dissipation2081.64 BTU/h
Power
Power supply includedYes
Number of power supply units1
Power consumption (max)610 W
Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Console portRJ-45/Mini-USB
USB 2.0 ports quantity1
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G supportYes
Port mirroringYes
IP routingYes
Link aggregationYes
Auto-sensingYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4093
Data transmission
Switching capacity320 Gbit/s
Throughput238 Mpps
MAC address table16000 entries
Store-and-forwardYes
Number of queues8
Number of static routes64
Jumbo frames supportYes
Jumbo frames9000
Design
Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
Airflow directionFront-to-back airflow
Performance
Physical stacking (units)8
Built-in processorYes
Processor frequency800 MHz
Internal memory1024 MB
Noise level35 dB
Mean time between failures (MTBF)690301 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget500 W
Packaging content
Rack mount kitYes
Security
DHCP featuresDHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN, MAC-based authentication
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
Routing protocolsOSPF, OSPFv3, RIP, RIP-1, RIP-2
Multicast features
Multicast supportYes
Number of multicast groups filtered4000
*
*
*
