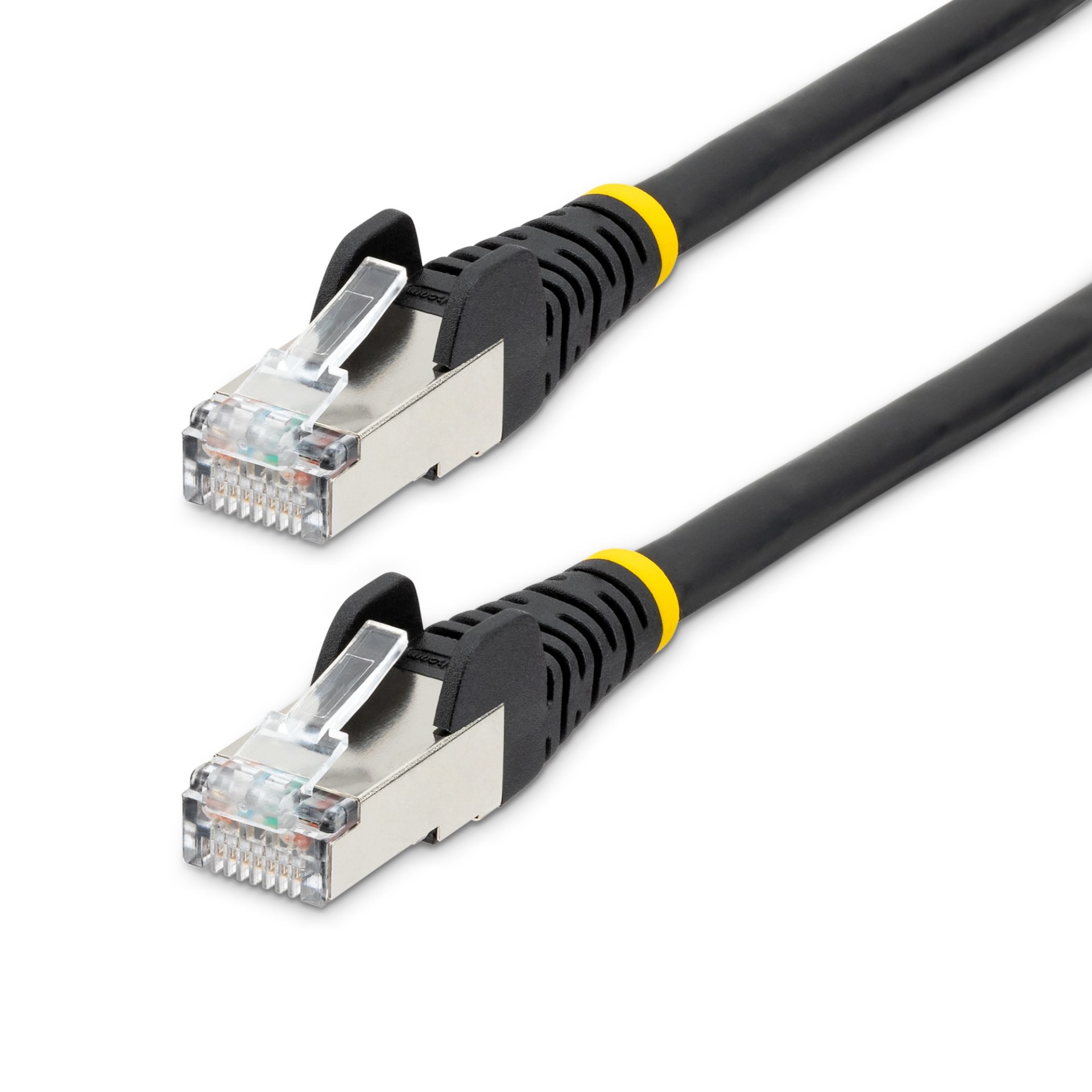

LSZH | 10GbE | 100W PoE++ | Snagless RJ-45
Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.
Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable
LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.
100W Power over Ethernet (PoE++)
This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.
RJ45 Connectors with Snagless Clips
The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.
The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Products specifications
| Product colour | Black |
| Cable length | 1.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector shielding | Yes |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cabling technology | 10GBase-T |
| AWG wire size | 27 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 500 MHz |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 100 W |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
| Weight | 58.7 g |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 100 pc(s) |
| Package width | 220 mm |
| Package depth | 190 mm |
| Package height | 12 mm |
| Package weight | 67.4 g |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Quantity per pack | 1 pc(s) |
