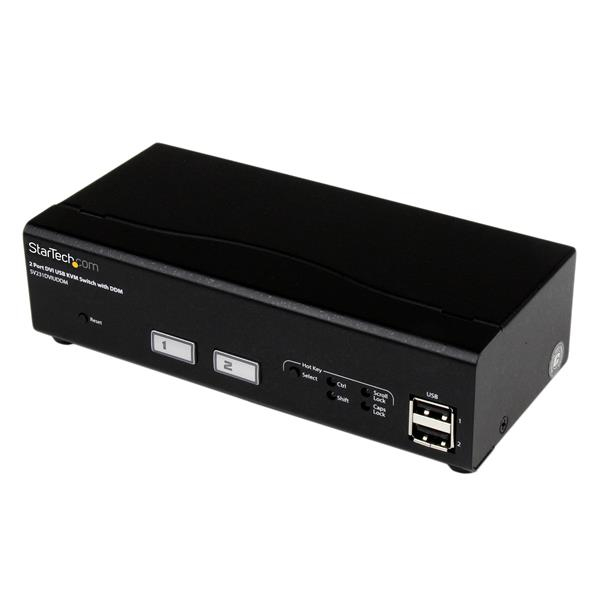

StarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables

StarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Certification: CE, FCC, TAA, UL. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS
Manufacturer: StarTech
SKU: SV231DVIUDDM
Vendor: Aspects
Control 2 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time

The SV231DVIUDDM 2-Port USB DVI KVM Switch lets you control 2 DVI, USB-equipped PCs using a single peripheral set at high-definition DVI resolutions up to 1920x1200.

The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.

For the next level in KVM performance, this DVI KVM switch integrates dual-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€186.25 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Control 2 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time

The SV231DVIUDDM 2-Port USB DVI KVM Switch lets you control 2 DVI, USB-equipped PCs using a single peripheral set at high-definition DVI resolutions up to 1920x1200.

The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.

For the next level in KVM performance, this DVI KVM switch integrates dual-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports
Products specifications
Weight & dimensions
Width76 mm
Depth165 mm
Height44 mm
Weight530 g
Other features
Audio supportNo
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width254 mm
Package depth350 mm
Package height69 mm
Package weight1.8 kg
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Power
Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.4 A
Output voltage5 V
Output current2 A
Power consumption (typical)10 W
Power plug typeType M
Compatible power plug typesUK, US
Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console portsDVI-I, USB A
Console USB ports quantity2
USB 2.0 ports quantity6
USB connector typeUSB Type-A, USB Type-B
Audio connectionsNo
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, FCC, TAA, UL
Performance
HD typeFull HD
Maximum resolution1920 x 1200 pixels
Plug and PlayYes
Daisy chainNo
Number of users1 user(s)
Display
Built-in displayNo
On Screen Display (OSD)No
Packaging content
Cables includedAC, DVI, USB
Quick installation guideYes
ManualYes
AC adapter includedYes
Sustainability
Compliance certificatesRoHS
*
*
*
Products specifications
Weight & dimensions
Width76 mm
Depth165 mm
Height44 mm
Weight530 g
Other features
Audio supportNo
IP controlNo
Logistics data
Harmonized System (HS) code85176200
Packaging data
Package width254 mm
Package depth350 mm
Package height69 mm
Package weight1.8 kg
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Power
Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.4 A
Output voltage5 V
Output current2 A
Power consumption (typical)10 W
Power plug typeType M
Compatible power plug typesUK, US
Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console portsDVI-I, USB A
Console USB ports quantity2
USB 2.0 ports quantity6
USB connector typeUSB Type-A, USB Type-B
Audio connectionsNo
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, FCC, TAA, UL
Performance
HD typeFull HD
Maximum resolution1920 x 1200 pixels
Plug and PlayYes
Daisy chainNo
Number of users1 user(s)
Display
Built-in displayNo
On Screen Display (OSD)No
Packaging content
Cables includedAC, DVI, USB
Quick installation guideYes
ManualYes
AC adapter includedYes
Sustainability
Compliance certificatesRoHS
