Mini DP Adapter Cable | Thunderbolt™ 3 Compatible | USB 3.1 Type-C™

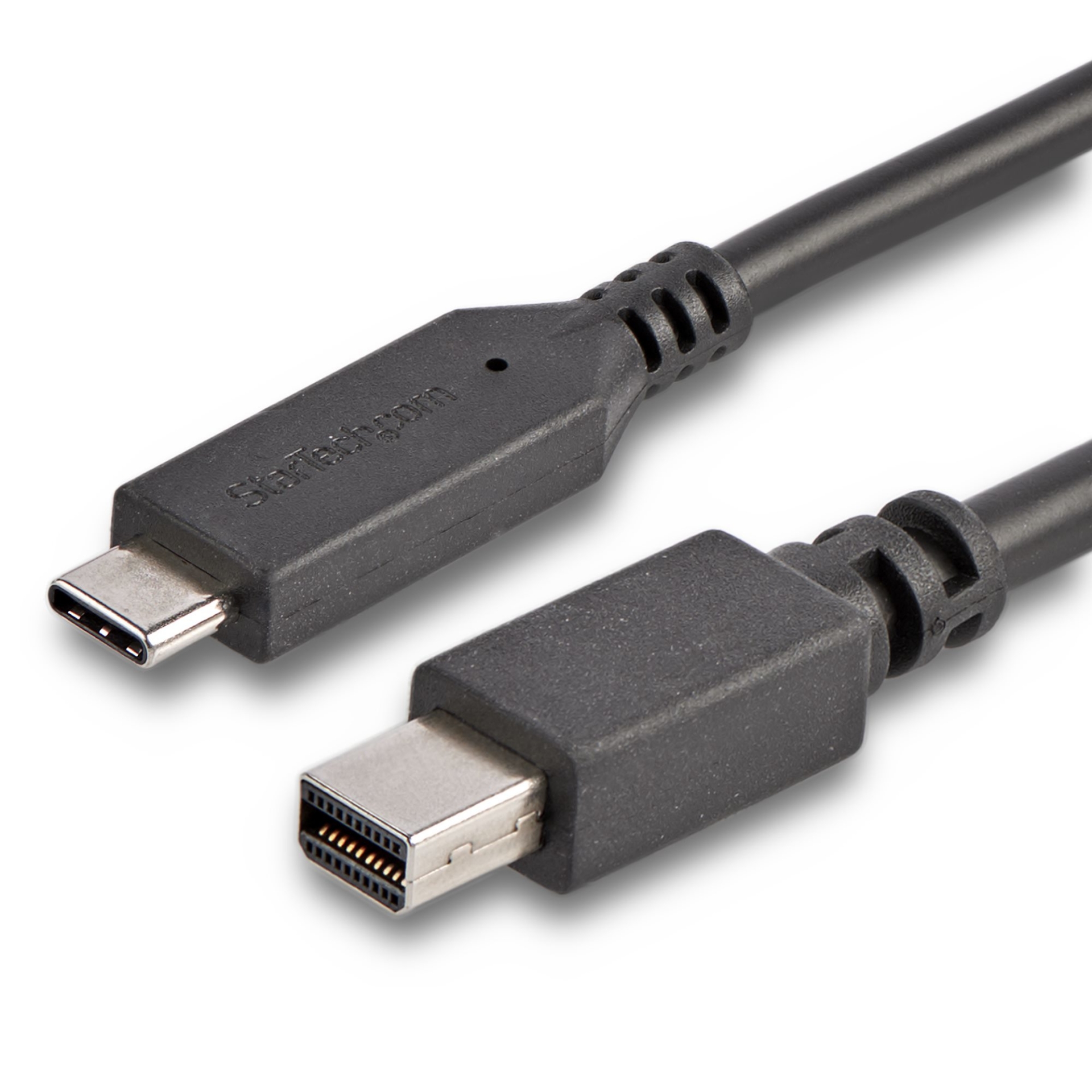

This USB-C to Mini DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a Mini DP monitor with just one cable, for a convenient, clutter-free connection.
Astonishing Picture Quality
Harness the video capabilities that are built into your USB-C connection. The USB Type-C to Mini DisplayPort cable delivers the astonishing quality of Ultra HD to your 4K display, at resolutions up to 3840 x 2160. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this Mini DP cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 1 m (3.3 ft.) USB C to mDP cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Setup
For easy operation and installation, this USB 3.1 Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers.
CDP2MDPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Connector 1 | USB Type-C |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | STMicroelectronics - STM32F072CBU6 |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Weight | 58 g |
| Width | 20 mm |
| Depth | 215 mm |
| Height | 10 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 60 pc(s) |
| Package width | 12 mm |
| Package depth | 220 mm |
| Package height | 8 mm |
| Package weight | 52 g |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 25 - 60% |
| Compliance certificates | RoHS |
| Certification | CE, FCC, RoHS |
| Quantity per pack | 1 pc(s) |
