Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection

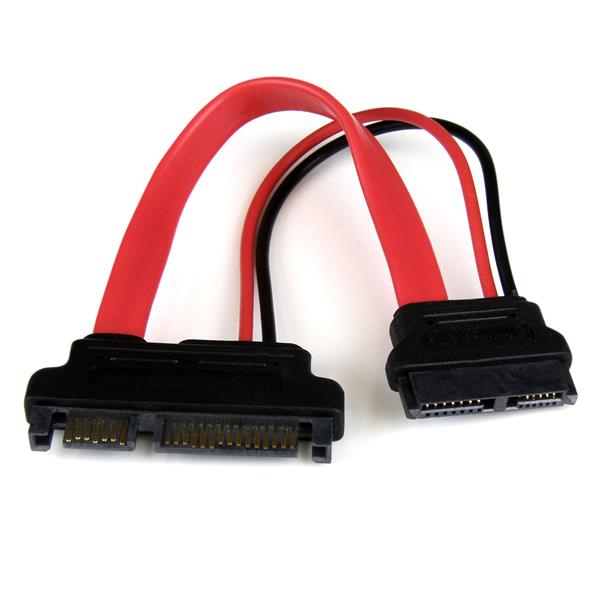

The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.
The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.
Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
- Cost-effective way to connect a Slimline SATA optical drive to a standard SATA motherboard, using standard SATA cables
- The 6-inch cable format reduces strain on, and prevents damage to the Slimline SATA drive connector and provides flexibility to position your Slim SATA drive as needed within your system case
- Backed by StarTech.com lifetime warranty
Products specifications
| Cable length | 0.1524 m |
| Cable type | SATA III |
| Connector 1 | Slimline SATA 13 pin |
| Connector 2 | SATA 7+15 pin |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector gender | Male/Female |
| Product colour | Red |
| AWG wire size | 18 |
| Maximum data transfer rate | 6 Gbit/s |
| Weight | 14 g |
| Harmonized System (HS) code | 84733080 |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 8 mm |
| Package weight | 19 g |
| Compliance certificates | RoHS |
| Certification | CE, REACH |
