Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice

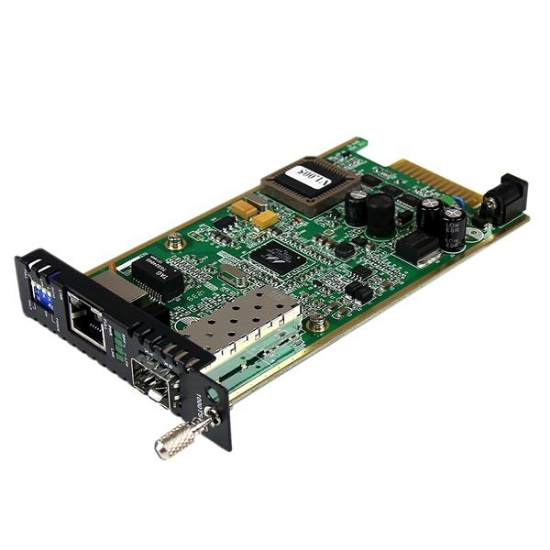

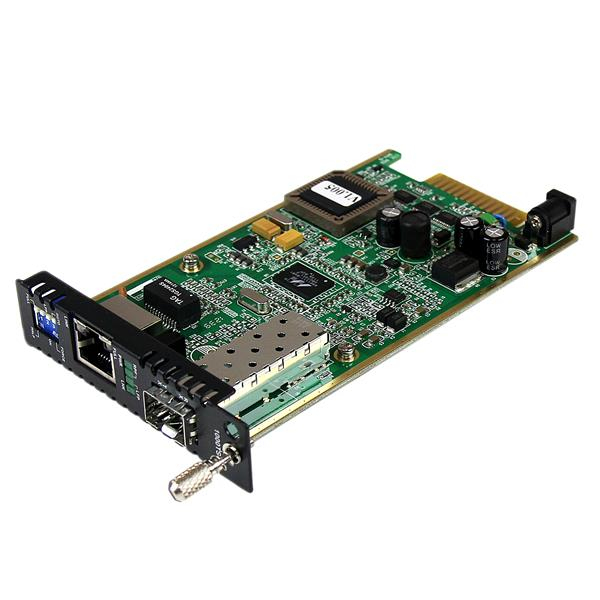

The ET91000SFP2C Open SFP Fiber Media Converter card module converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).
Designed for applications where multiple chassis-powered media converters are required, this Gigabit media converter ships as a card module that can easily be installed into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For standalone operation this Gigabit media converter can also be purchased as a standard ET91000SFP2" text="Open SFP Media Converter (ET91000SFP2).
The fiber to Ethernet converter offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Install the SFP of your choice with the open SFP slot
- Easily set up a full rack mount chassis of media converters with the card module design
- Ensure maximum up-time with link-loss forwarding and remote status monitoring
Products specifications
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Black, Green |
| Width | 75 mm |
| Depth | 140 mm |
| Height | 20 mm |
| Weight | 100 g |
| Harmonized System (HS) code | 85176990 |
| Package width | 130 mm |
| Package depth | 185 mm |
| Package height | 27 mm |
| Package weight | 184 g |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 8 W |
| Power over Ethernet (PoE) | No |
| External power adapter | No |
| Compliance certificates | RoHS |
| Certification | FCC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Mean time between failures (MTBF) | 65000 h |
| Manual | Yes |
