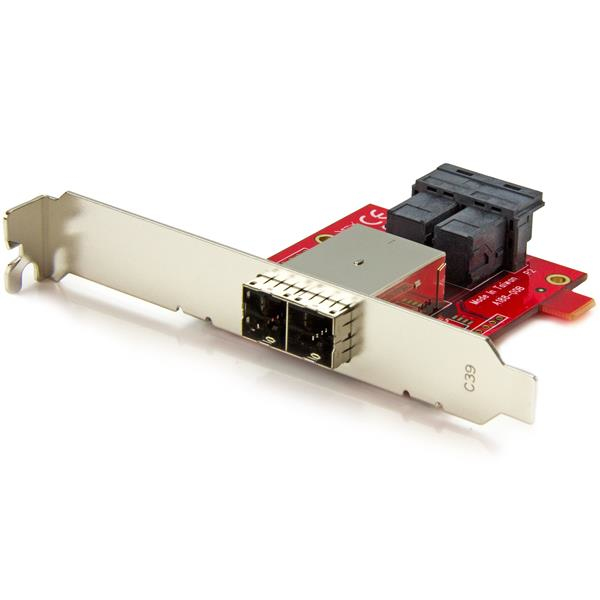

This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.
The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.
The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Products specifications
| Width | 120 mm |
| Depth | 74 mm |
| Height | 22 mm |
| Weight | 54 g |
| Harmonized System (HS) code | 84733020 |
| Quantity per pack | 1 pc(s) |
| Package width | 173 mm |
| Package depth | 145 mm |
| Package height | 33 mm |
| Package weight | 112 g |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Host interface | Mini SAS |
| Output interface | Mini-SAS HD |
| External mini-SAS HD ports | 2 |
| Internal mini-SAS HD ports | 2 |
| Internal | Yes |
| Product colour | Red |
| Certification | CE, FCC, TAA, REACH |
