100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

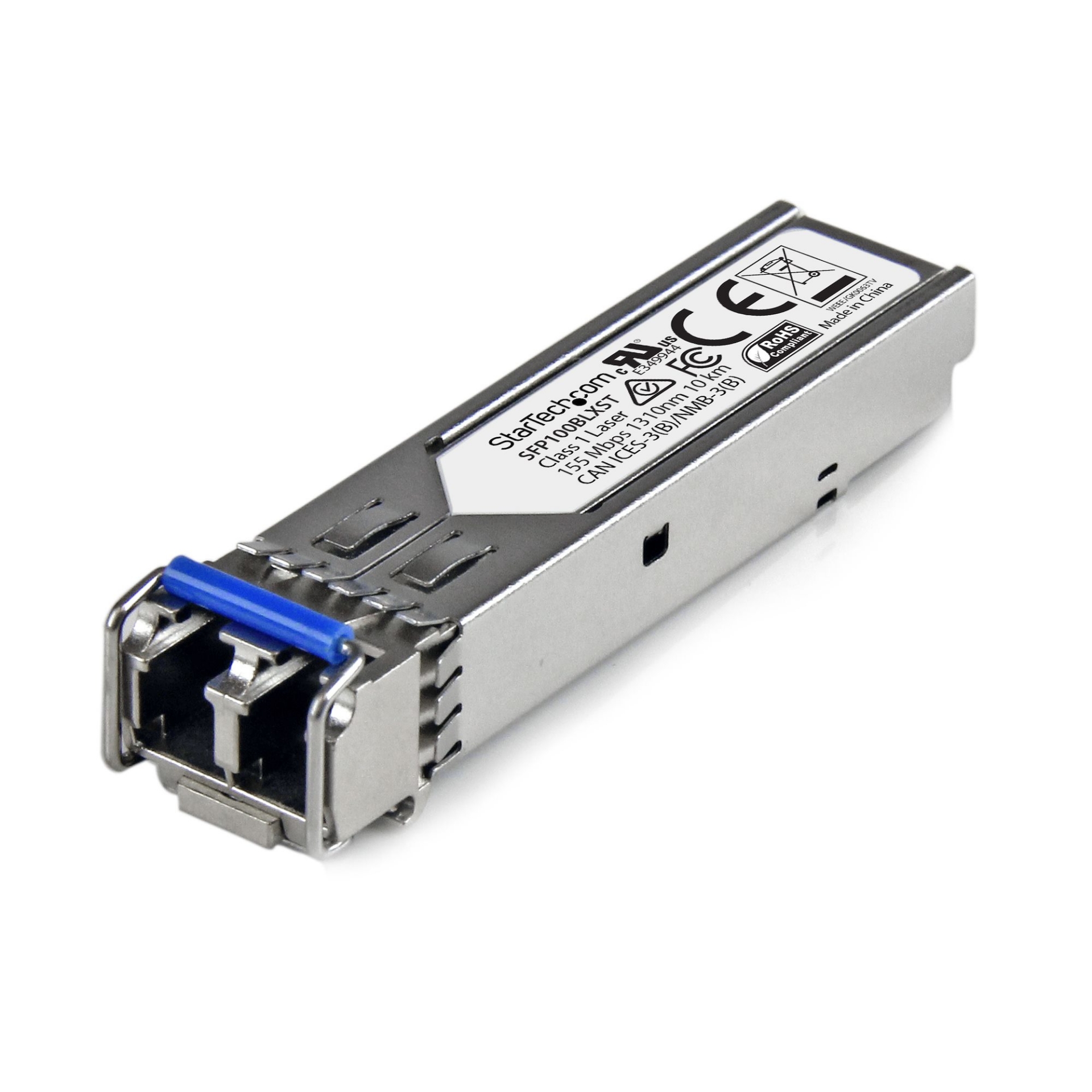

The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Products specifications
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Width | 14 mm |
| Depth | 59 mm |
| Height | 13 mm |
| Weight | 30 g |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 33 mm |
| Package weight | 95 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Quantity per pack | 1 pc(s) |
