Sorry - this product is no longer available

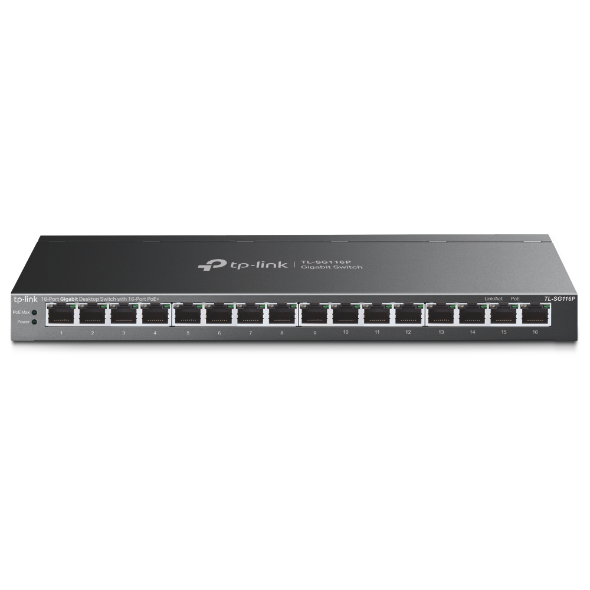

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

Be the first to review this product
TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Manufacturer: TP-Link
SKU: TL-SG116P
Vendor: Aspects
TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€129.13 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable
Products specifications
Weight & dimensions
Width286 mm
Depth111.7 mm
Height25.4 mm
Packaging data
Package width227 mm
Package depth434 mm
Package height70 mm
Package weight2 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation490.55 BTU/h
Power
Power supply includedYes
AC input voltage220 V
AC input frequency50 Hz
DC input voltage9 V
Input current0.6 A
Power consumption (typical)11.72 W
Power consumption (max)144.28 W
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity16
Network
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Cable length detectionYes
VLAN supportYes
Virtual LAN featuresProtocol-based VLAN, Tagged VLAN
Number of VLANs32
Data transmission
Switching capacity32 Gbit/s
Forwarding rate23.81 Mpps
MAC address table8000 entries
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Design
StackableYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Wall mountableYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Packaging content
Quick start guideYes
Security
IGMP snoopingYes
Loop protectionYes
*
*
*
