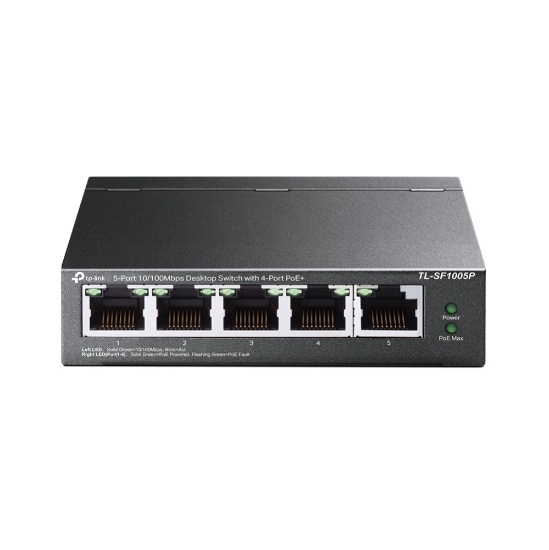

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port

Be the first to review this product
TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE)
Manufacturer: TP-Link
SKU: TL-SF1005P
Vendor: Aspects
PoE Switches for Your Ultra Convenience
5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€30.44 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
PoE Switches for Your Ultra Convenience
5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Products specifications
Weight & dimensions
Width99.8 mm
Depth98 mm
Height25 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
AC adapter includedYes
Package typeBox
Package width131 mm
Package depth196 mm
Package height121 mm
Package weight760 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation252.34 BTU/h
Power
Power sourceDC/PoE
Power supply includedNo
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Input current1.31 A
Power consumption (max)74 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Networking standardsIEEE 802.3af, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Data transmission
Switching capacity1 Gbit/s
Forwarding rate0.744 Mpps
MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000
Design
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Performance
Maximum cable length100 m
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget67 W
Packaging content
User guideYes
Sustainability
Sustainability complianceYes
*
*
*
Products specifications
Weight & dimensions
Width99.8 mm
Depth98 mm
Height25 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
AC adapter includedYes
Package typeBox
Package width131 mm
Package depth196 mm
Package height121 mm
Package weight760 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation252.34 BTU/h
Power
Power sourceDC/PoE
Power supply includedNo
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Input current1.31 A
Power consumption (max)74 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Networking standardsIEEE 802.3af, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Data transmission
Switching capacity1 Gbit/s
Forwarding rate0.744 Mpps
MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000
Design
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Performance
Maximum cable length100 m
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget67 W
Packaging content
User guideYes
Sustainability
Sustainability complianceYes
