Sorry - this product is no longer available

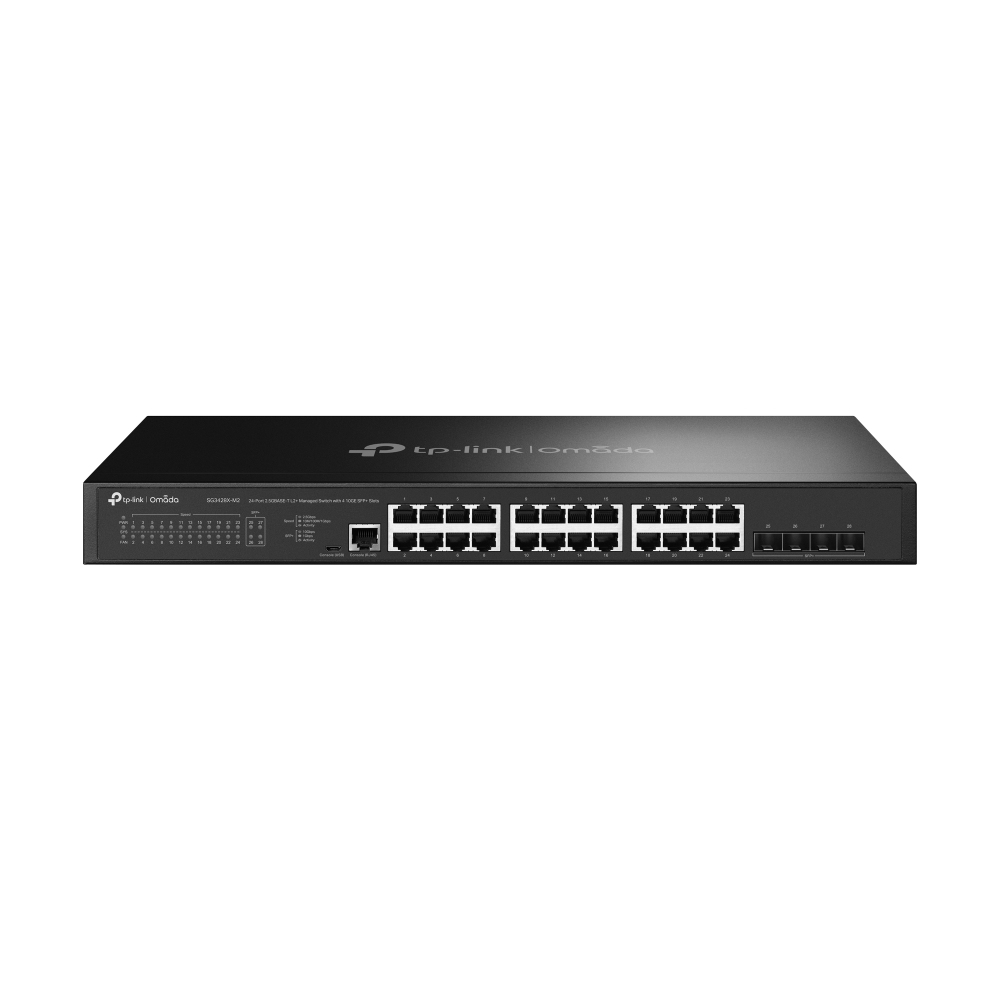

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Manufacturer: TP-Link
SKU: SG3428X-M2
Vendor: Aspects
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€461.96 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Products specifications
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation154.38 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)45.1 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationCE, FCC, RoHS
Management features
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity24
SFP+ module slots quantity4
Console portRJ-45/Micro-USB
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G supportYes
Port mirroringYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Active link detectionYes
IPv4 routes48
IPv6 routes48
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Switching capacity200 Gbit/s
Forwarding rate148.8 Mpps
MAC address table32000 entries
Store-and-forwardYes
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory16 MB
Design
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans1 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedLAN (RJ-45)
Quick start guideYes
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationAuto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication typeAAA, RADIUS, TACACS+
Protocols
Management protocolsSNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 FIB entries100
IPv6 FIB entries100
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY
*
*
*
Products specifications
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation154.38 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)45.1 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationCE, FCC, RoHS
Management features
Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity24
SFP+ module slots quantity4
Console portRJ-45/Micro-USB
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G supportYes
Port mirroringYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Active link detectionYes
IPv4 routes48
IPv6 routes48
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Switching capacity200 Gbit/s
Forwarding rate148.8 Mpps
MAC address table32000 entries
Store-and-forwardYes
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory16 MB
Design
Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans1 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedLAN (RJ-45)
Quick start guideYes
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationAuto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication typeAAA, RADIUS, TACACS+
Protocols
Management protocolsSNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 FIB entries100
IPv6 FIB entries100
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY
