Sorry - this product is no longer available

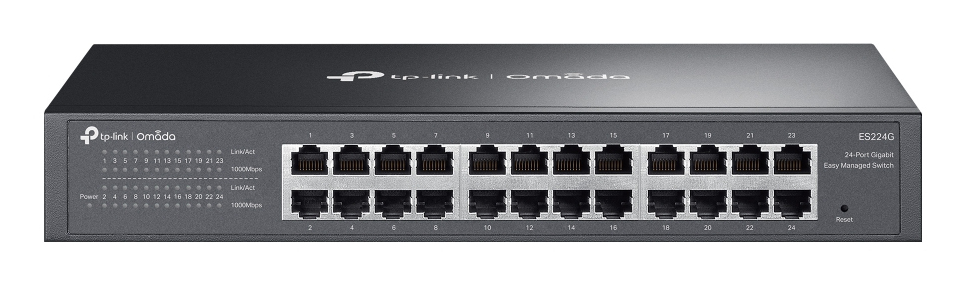

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Be the first to review this product
TP-Link Omada ES224G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Rack mounting
Manufacturer: TP-Link
SKU: ES224G
Vendor: Aspects
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€103.26 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Products specifications
Weight & dimensions
Width294 mm
Depth140 mm
Height44 mm
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Surge protectionYes
Surge protection voltage6 kV
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Network
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN
Number of VLANs32
Data transmission
Switching capacity48 Gbit/s
Forwarding rate35.7 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
Design
Rack mountingYes
Product colourBlack
Performance
Firmware upgradeableYes
FanlessYes
Packaging content
Cables includedAC
User guideYes
Rack mount kitNo
Security
DHCP featuresDHCP client
IGMP snoopingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
*
*
*
