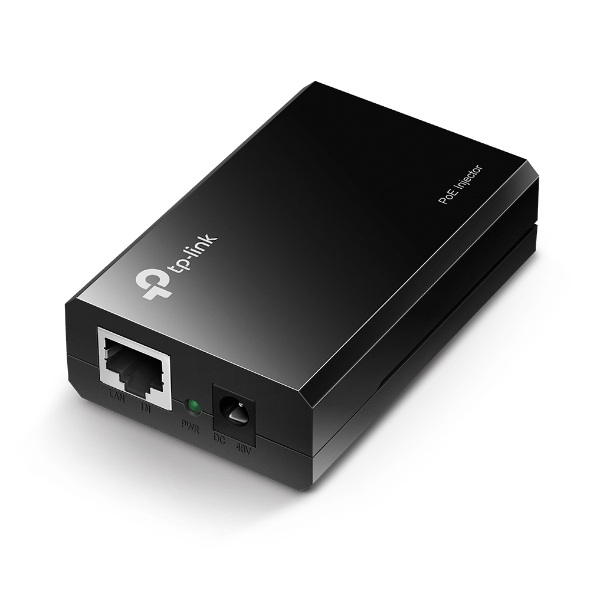

TP-LINK’s PoE Injector TL-POE150S fully complies with IEEE 802.3af standard. No need to buy a PoE switch, you can use the existing non-PoE switch or non-PoE router to connect PoE devices with the help of TL-POE150S.
The PoE Injector TL-POE150S can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent products, to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras or IP Phones, etc.
Products specifications
| Product colour | Black |
| Plug and Play | Yes |
| Width | 81 mm |
| Depth | 52 mm |
| Height | 24 mm |
| Package width | 165 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 350 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Output power | 15.4 W |
| Input voltage | 48 V |
| Certification | FCC, CE, RoHS |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Quick installation guide | Yes |
