Support 2.5 Gigabit High Network Speed

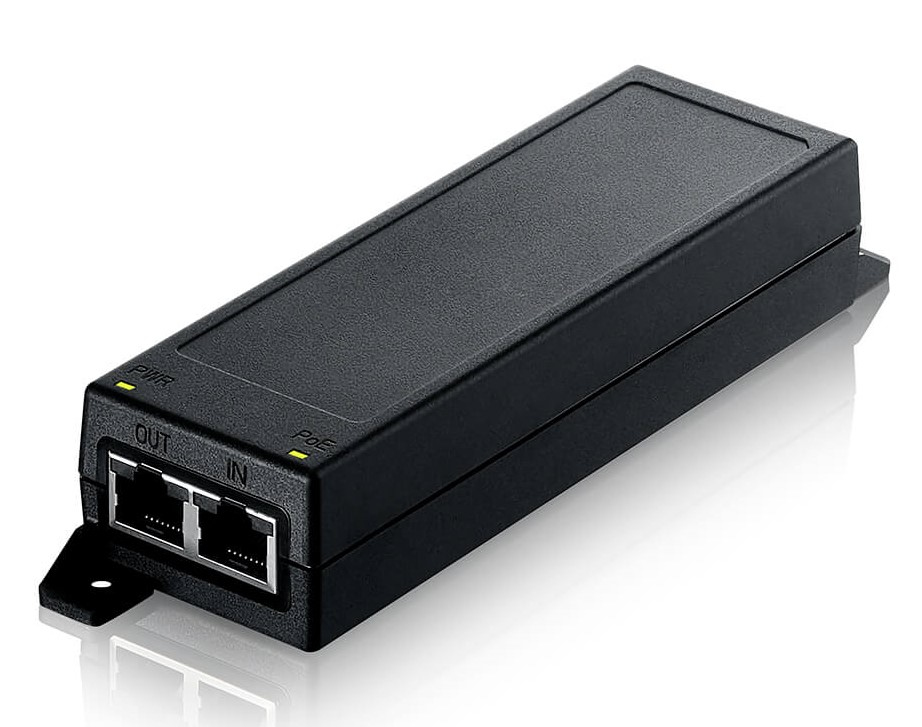

PoE12-30W is a Multi-Gigabit PoE injector supporting network speeds of up to 2.5Gbps. It is allowed to connect powered devices through existing Cat 5e or above cable.
Plug and Play—Ease of Use
PoE12-30W is easy to connect network devices without any configuration. The wall-mount and desktop design accommodate most installations scenarios.
Products specifications
| Product colour | Black |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Width | 140 mm |
| Depth | 45.5 mm |
| Height | 30 mm |
| Weight | 144 g |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating temperature (T-T) | 14 - 113 °F |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Output power | 30 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1 A |
| Total Power over Ethernet (PoE) budget | 30 W |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u |
| Power cord included | Yes |
