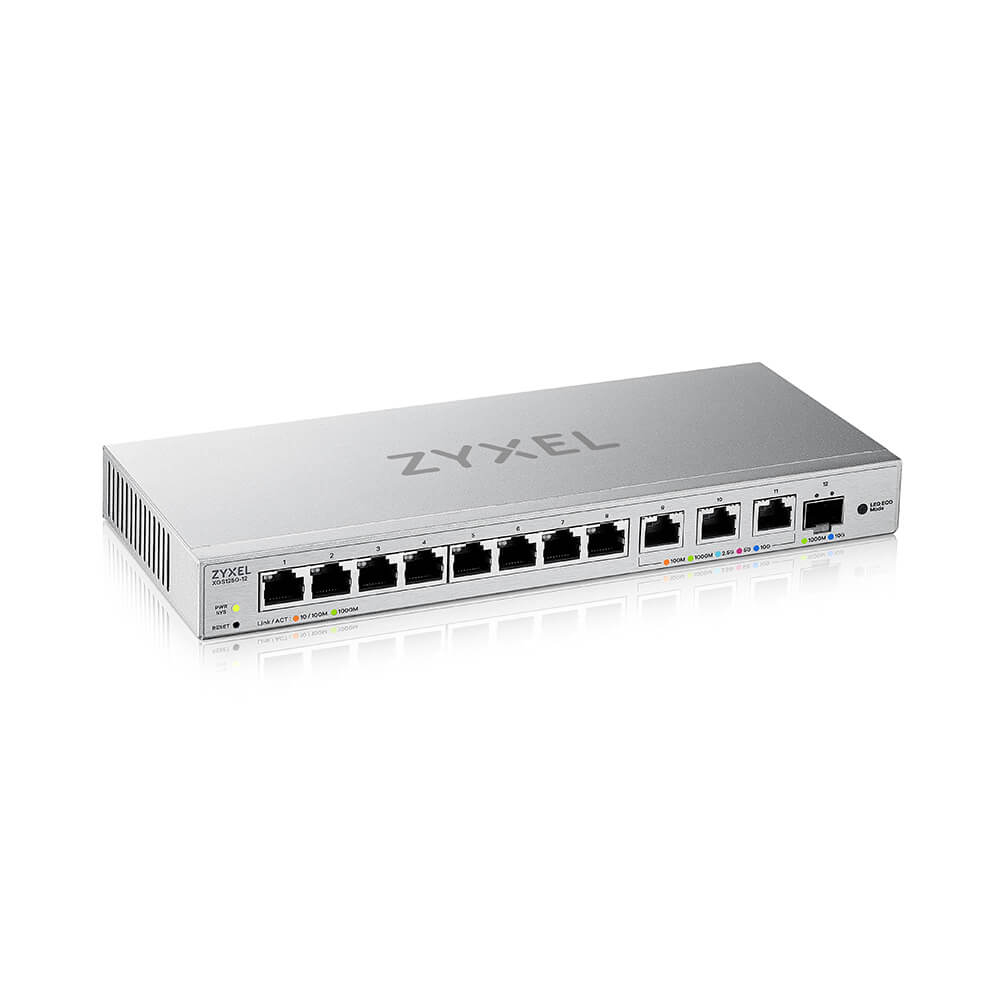

Zyxel XGS1250-12 Managed L2 10G Ethernet (100/1000/10000) Grey

Zyxel XGS1250-12. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 11. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Manufacturer: Zyxel
SKU: XGS1250-12-ZZ0102F
Vendor: Aspects
Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications
Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.

  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€191.62 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications
Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.

Products specifications
Weight & dimensions
Width250 mm
Depth104 mm
Height27 mm
Weight783 g
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)20.06 W
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity11
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity1
Power connectorDC-in jack
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportYes
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportYes
Data transmission
Switching capacity96 Gbit/s
Forwarding rate71.42 Mpps
MAC address table16000 entries
Jumbo frames supportYes
Jumbo frames12000
Design
Rack mountingNo
StackableNo
Product colourGrey
Housing materialAluminium, Iron
Reset buttonYes
LED indicatorsYes
Redundant fans supportYes
Wall mountableYes
DIN rail mountingNo
Number of fans1 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Security
DHCP featuresDHCP client
IGMP snoopingYes
Multicast features
Multicast supportYes
*
*
*
Products specifications
Weight & dimensions
Width250 mm
Depth104 mm
Height27 mm
Weight783 g
Logistics data
Harmonized System (HS) code85176990
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)20.06 W
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportY
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity11
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity1
Power connectorDC-in jack
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportYes
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
VLAN supportYes
Data transmission
Switching capacity96 Gbit/s
Forwarding rate71.42 Mpps
MAC address table16000 entries
Jumbo frames supportYes
Jumbo frames12000
Design
Rack mountingNo
StackableNo
Product colourGrey
Housing materialAluminium, Iron
Reset buttonYes
LED indicatorsYes
Redundant fans supportYes
Wall mountableYes
DIN rail mountingNo
Number of fans1 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Security
DHCP featuresDHCP client
IGMP snoopingYes
Multicast features
Multicast supportYes
